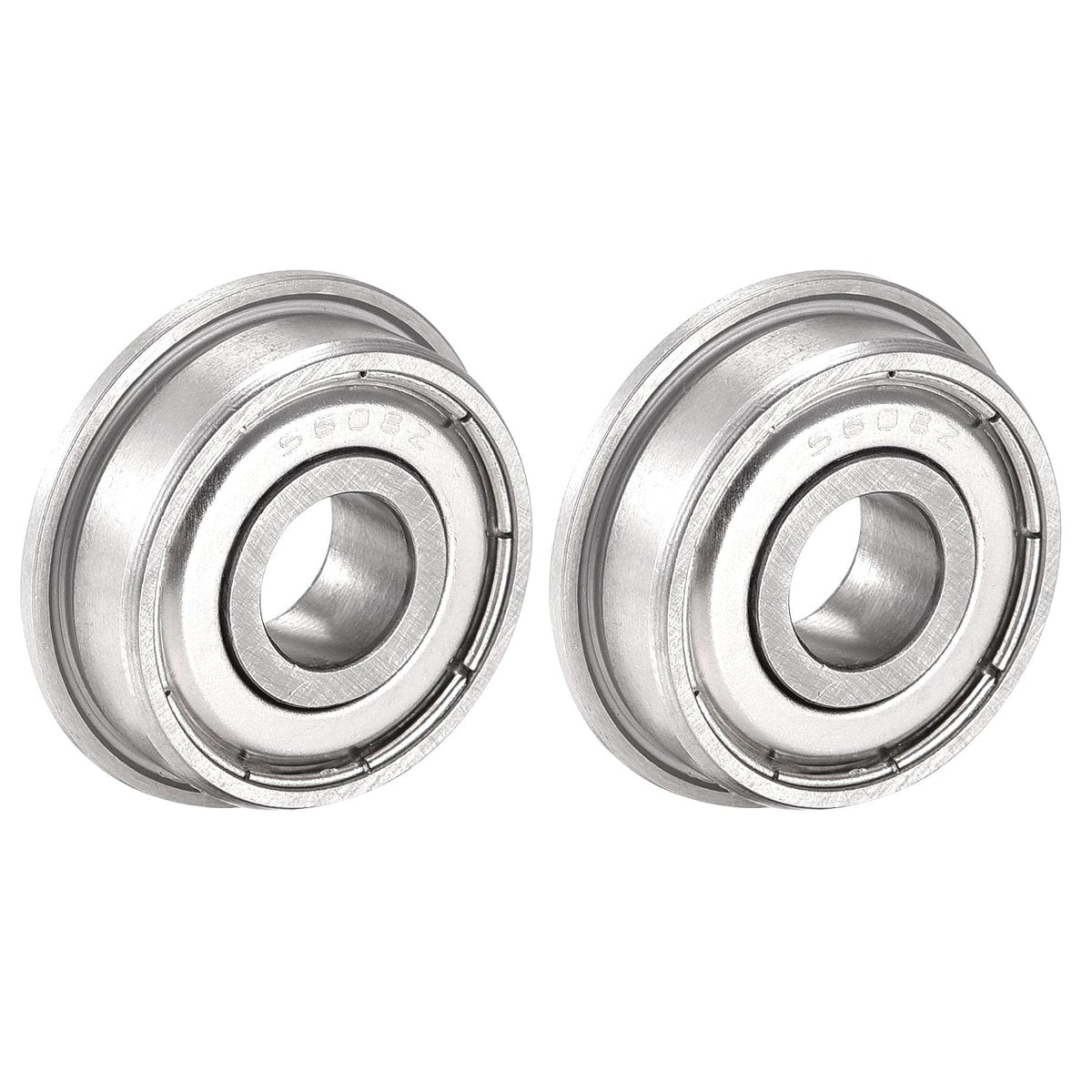

SF608ZZ Stainless Steel Flanged Ball Bearing 8x22x7mm Double Shielded 2pcs

Key Features

• [Size] - SF608ZZ bearing (I.D.=8mm, O.D.=22mm, Thickness=7mm, Flange Dia=25mm).
• [Magnetic] - 440 Stainless Steel provides higher resistance to rust and corrosion than chrome steel, and it is magnetic.
• [Easy to Maintain] - Shields on Both sides to keep lubricant in. P0 grade (ABEC-1) for most general use.
• [Load & Speed] - Dynamic load rating of 3.293kN and static load rating of 1.379kN. With small friction and high-limit speed.
• [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other projects.

Product Description

NotePlease refer to the picture and select the right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Selection GuideShields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.DescriptionSingle-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial loads.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Stainless steel bearing features stronger rust and corrosion resistance ability.Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so onSpecificationShield Type: Double ShieldedInner Race/Outer Race Material: 440C Stainless SteelCage Material: Stamping SteelInner Diameter (d): 8mmOuter Diameter (D): 22mmThickness (B): 7mmFlange Dia.: 25mmFlange Thickness: 1.5mmDynamic Load Rating (Cr): 3.293 kNStatic Load Rating (Cor): 1.379 kNAccuracy Class: P0 (ABEC1)
