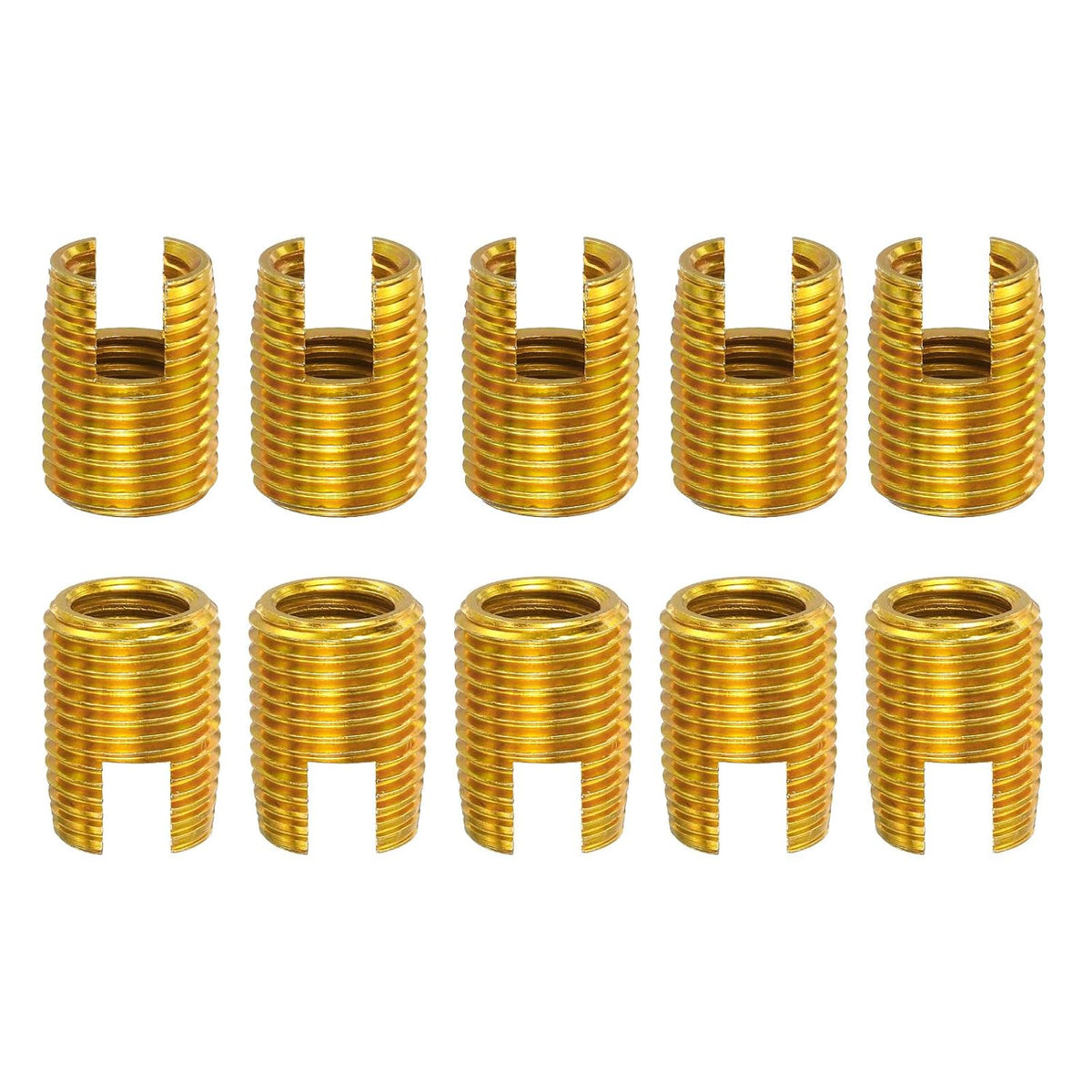

Self Tapping Threaded Inserts, 15pcs M12-1.75 Female to M16-1.5 Male Carbon Steel Slotted Thread Repair Inserts Nuts, 22mm Long
Key Features
- Inner Thread Size M12x1.75((Dia.x Pitch); Outer Thread SizeM16x1.5(Dia.x Pitch); Length 22mm/0.87"; Min. Drilling Depth 26mm/1.02"; Refer to Drilling Diameter 14.6-14.8mm(Plastic), 15.0-15.3mm(Aluminum Alloy), 15.2-15.4mm(Cast Iron); Package Content 15pcs x Threaded Inserts
- Material Carbon steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.
- Advantages With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.
- Installation 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.
- Application It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries.
Product Description
About this item Inner Thread Size: M12x1.75((Dia.x Pitch); Outer Thread Size:M16x1.5(Dia.x Pitch); Length: 22mm/0.87"; Min. Drilling Depth: 26mm/1.02"; Refer to Drilling Diameter: 14.6-14.8mm(Plastic), 15.0-15.3mm(Aluminum Alloy), 15.2-15.4mm(Cast Iron);
Package Content
15pcs x Threaded Inserts Material: Carbon steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening. Advantages: With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve. Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation. Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries. ›
Specifications
| Product Dimensions | 5.51 x 3.94 x 0.59 inches |
