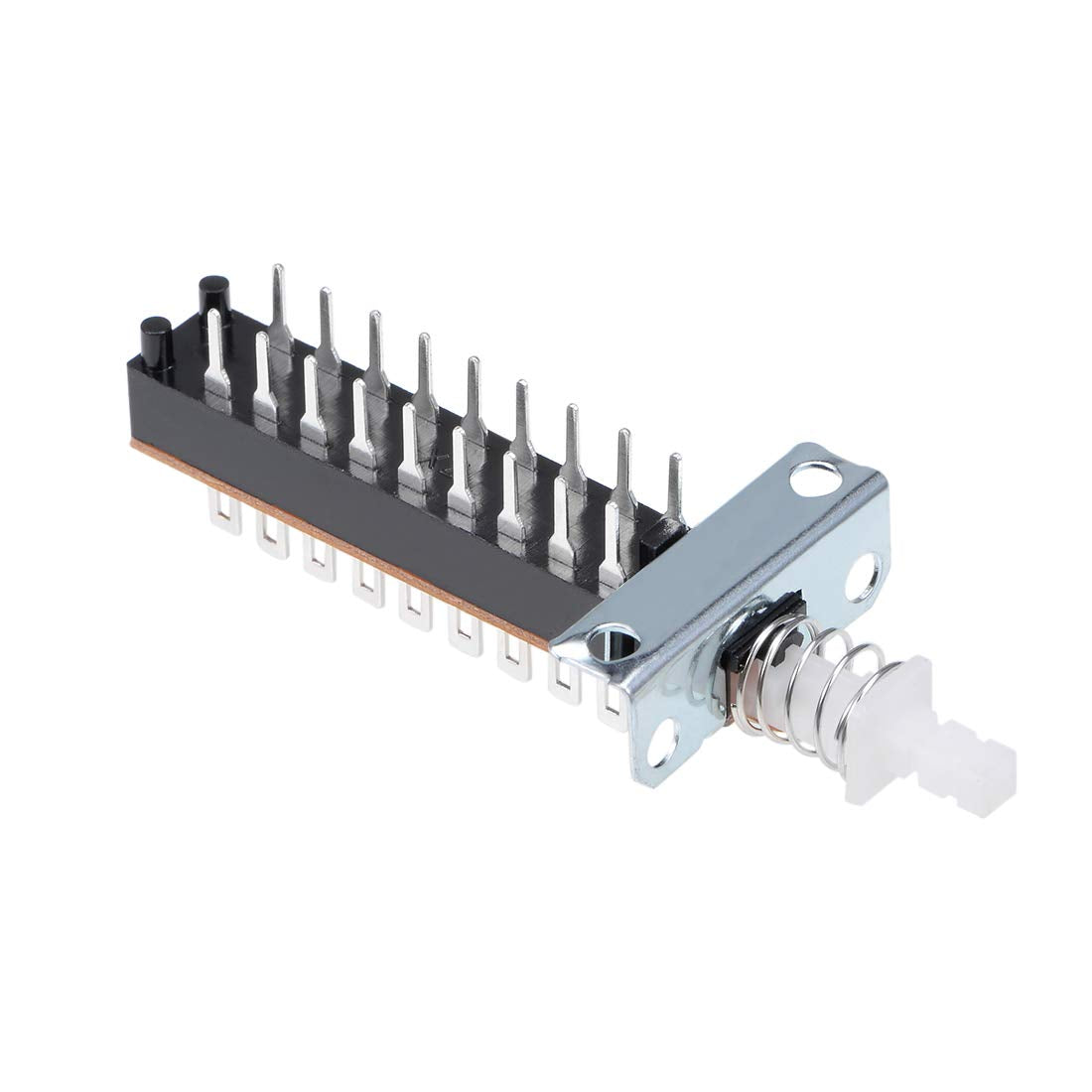

Self-Locking Push Button Switch 6PDT 6 Pole 18 Pin 1 Position

Key Features

• [Standard] - 6PDT 18 Pins 4mm Pitch 1 Position
• [Push Button SwitchSwitch] - Self locking straight through hole miniature switch
• [Features] - Mechanism design offers operation and long service life
• [Applications] - Great for mounting on PCB motherboard of many electric appliances
• [Package Content] - 1 x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: LatchingContact Configuration: 6PDTTerminal Type: Straight Through HolePin Quantity: 18Each Pin Pitch: 4mmPosition Quantity: 1End Width: 9mm / 0.35-inchMounting Distance: 5.5mm / 0.22-inchMounting Hole Distance: 20mm / 0.79-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 67 x 26 x 18mm / 2.64-inch x 1.02-inch x 0.71-inch(L*W*H) Package Contents:1 x Push Button Switch

Description

Latching contact, 18 pins, DIP through hole mounting.Used in electronic products, household appliances and more.High precision mechanism design offers operation and long service life.
