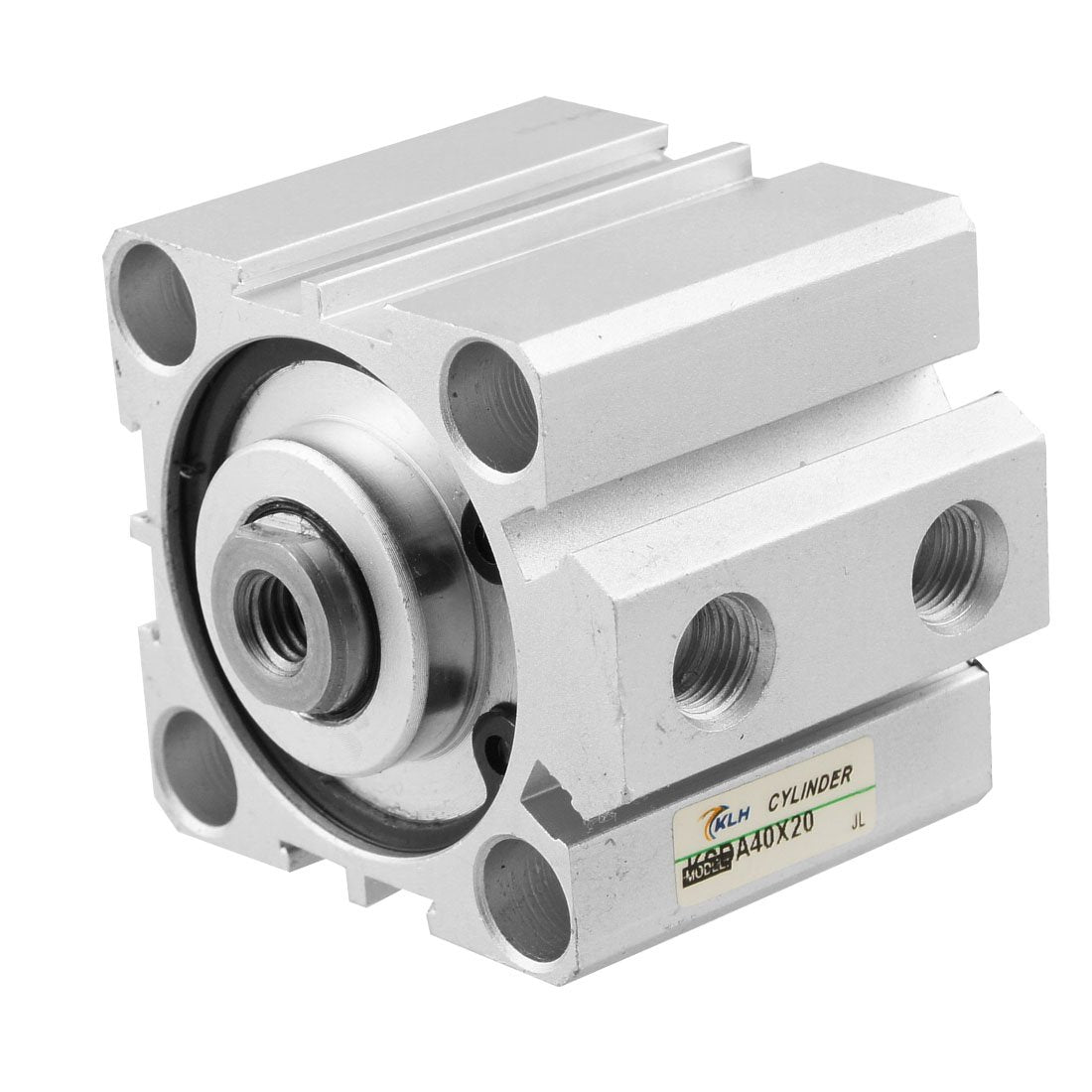

SDA40x20 40mm Bore 20mm Stroke Double Acting Compact Air Cylinder

Key Features

• Product Name Air Cylinder;Model SDA40x20;Action Type Double Action
• Bore 40mm / 1.5";Stroke 20mm / 0.78";Max Presssure 1.0Mpa / 10.2Kg/cm2 / 145PSI
• Rod Diameter 16mm / 0.63"';Rod Thread Diameter 7mm / 0.27";Air Hole Diameter 9mm / 0.35"
• Mounting Hole Diameter 7mm / 0.27";Mounting Hole Distance(center to center) 40 x 40mm / 1.5" x 1.5" (L * W);Overall Size(Approx) 52 x 52 x 46mm / 2"x 2"x 1.8"(L*W*H)
• Material Aluminum Alloy;Weight 260g;Package Content 1 x Air Cylinder

Product Description

40mm bore and 20mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

Specifications
