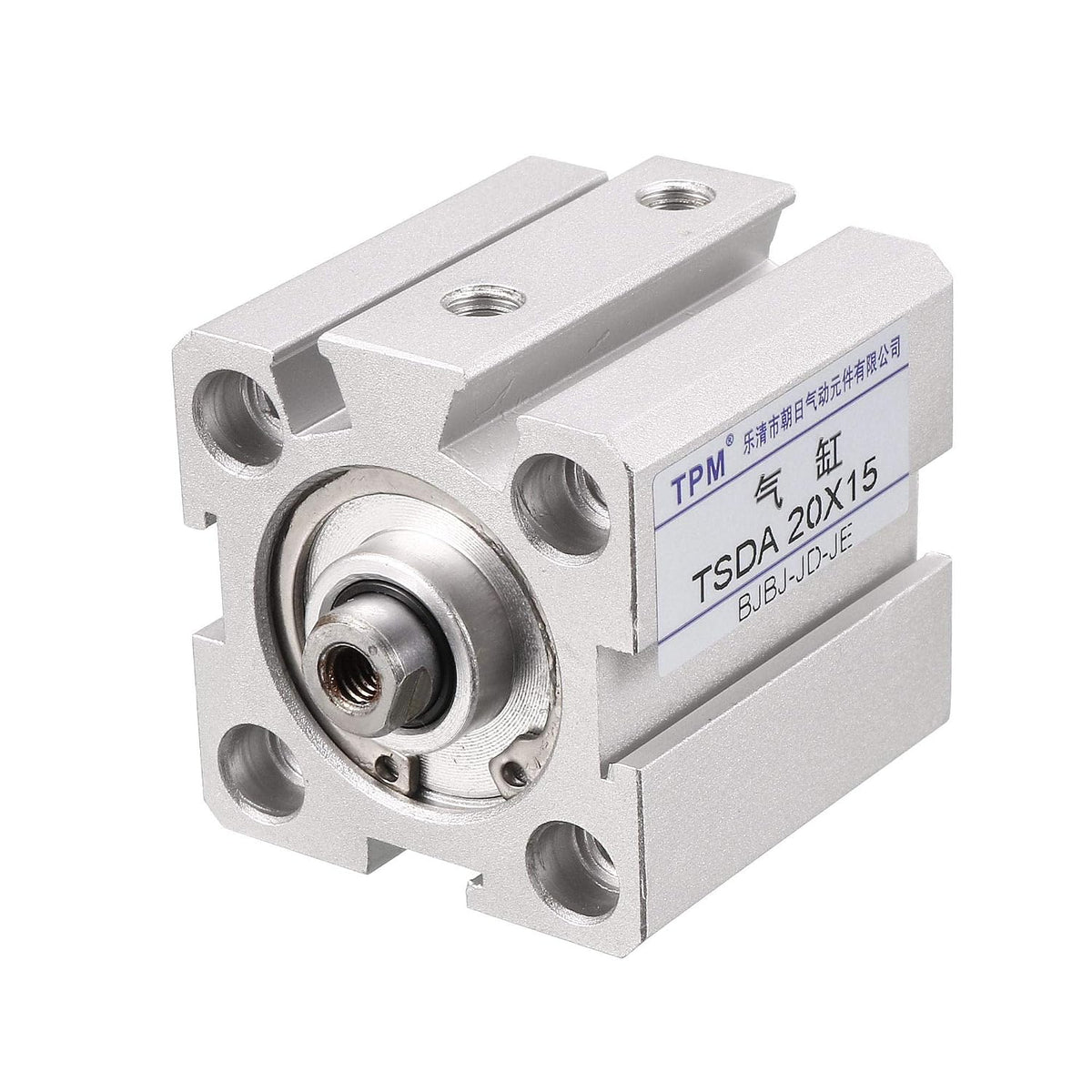

SDA 20mm Bore 15mm Stroke Compact Thin Pneumatic Air Cylinder

Key Features

• Product Name Air Cylinder;Model SDA 20 x15;Material Aluminum Alloy;Color Silver Tone
• Motion Type Double Action;Working Medium Pass Filtered & Lubricator Compress Air;Max Pressure 1Mpa
• Bore 20mm/ 7.9";Stroke 15mm/ 5.9";Piston Rod Hole Diameter 8mm/ 0.3"
• Mounting Hole Spacing 18mm/ 0.7";Mounting Hole Diameter 6mm/0.2";inlet/outlet Hole Diameter 4mm/ 0.16"
• Overall Size 35 x 34 x 40mm/ 2" x 1.7" x 1.7"(L*W*H);Net Weight 83g;Package Content 1 x Compact Air Cylinder

Product Description

Specification:

Description

Compact thin cylinder requiring small space for installation, easy maintance and disassembly. Provided with push-in slot for installation of magnet swith, which can fix the magnet switch at any position. The air cylinder, without the need to add lube, suits the occasions of short stroke and small installation space.

Specifications
