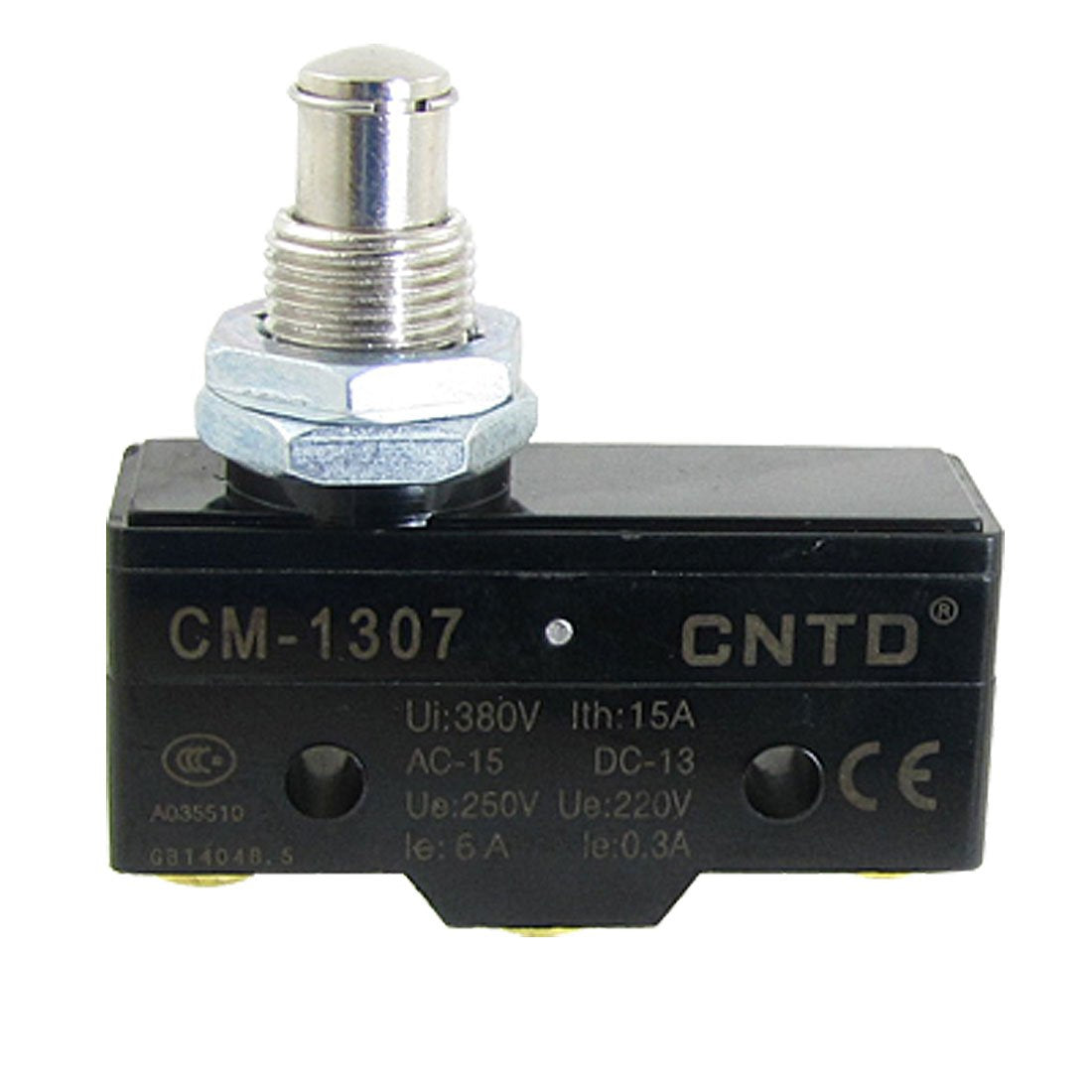

Screw Terminals Panel Mount Plunger Micro Switch, 380V, 15 Amp

Key Features

• Product name Micro switch; model No. cm-1307;actuator Type panel mount plunger; contact Type 1 No, 1 NC, 1 COM
• Terminal Type screw terminals; ui 380V;ith 15A;ac-15 UE 250V, le 6A
• Dc-13 UE 220V, LED 0.3A;Threaded DIA 1.17cm / 0.46";Hole DIA 0.42cm / 0.165"
• Main body Size 5 x 1.75 x 2.4cm / 2" x 0.69" x 0.9"(L*w*h);Overall height 4.9cm / 1.9";material metal , plastic
• Color as picture show; net weight 50G;package content 1 x Micro switch

Product Description

This Micro switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection.
