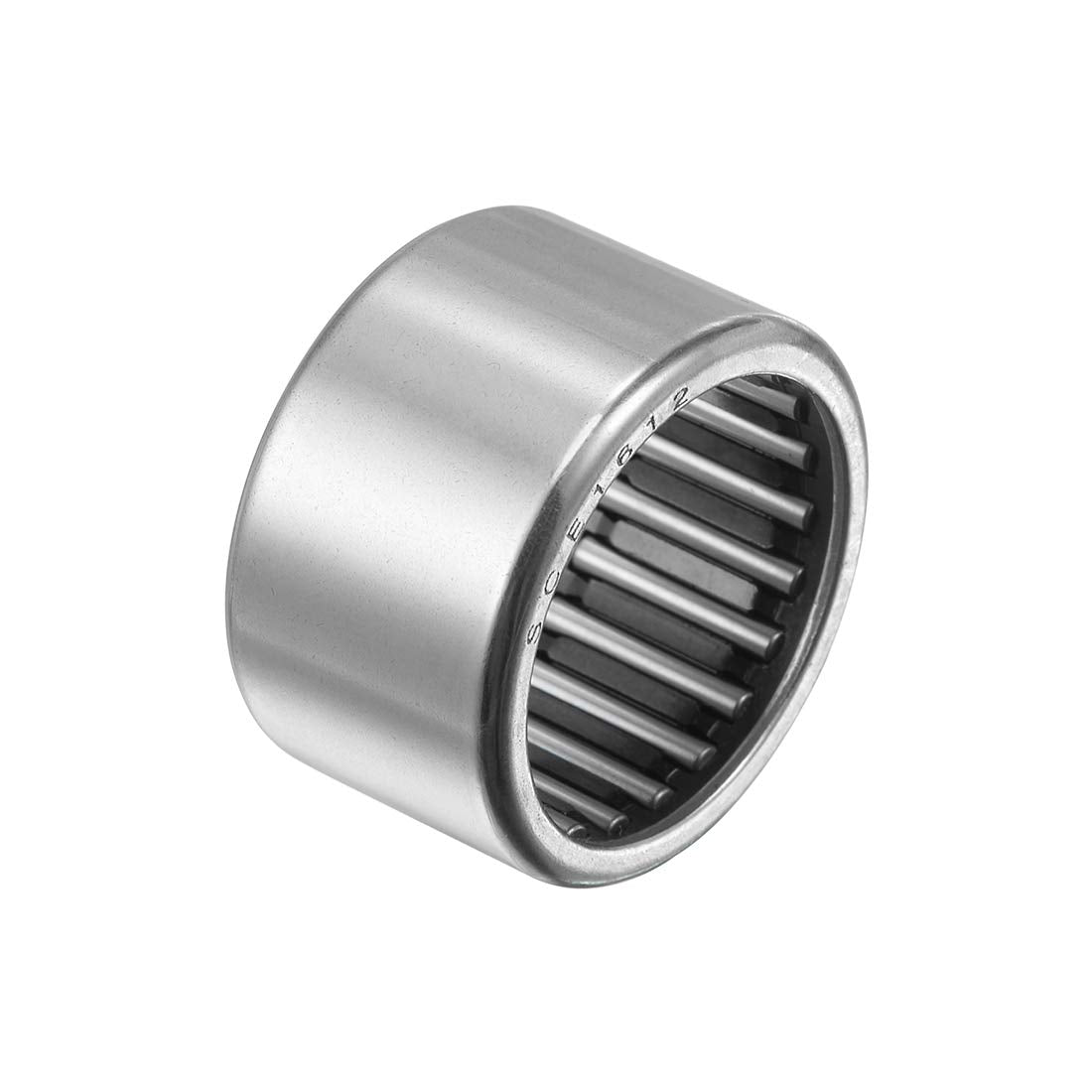

SCE1612 Drawn Cup Needle Roller Bearings 1" Bore 1-1/4" OD 3/4" Width

Key Features

• [MODLE] - SCE1216 (Inner Diameter = 1", Outer Diameter = 1-1/4", Width= 3/4")
• [MATERIAL] - Chrome Steel Needle Roller, ST14 Steel Drawn Cup
• [DURABLE] - Good heat tolerance, high load carrying capacity and stiffness
• [FEATURES] - Low cross section, enable downsizing and suit for use in restricted mounting spaces
• [CAPABILITY] - 30kN Static Load Capacity, 18kN Dynamic Load Capacity, 10100RPM Maximum Rotational Speed

Product Description

Specification:Model: SCE1612Drawn Cup Material: ST14 SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 1"Outside Diameter (D): 1-1/4"Width: 3/4"Dynamic Load Rating: 18kNStatic Load Rating: 30kNMaximum Rotational Speed (Oil): 10100rpmNumber of Pack: 1 Pcs

Description

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

NOTE

Install with press machine or special tools instead of hammers because hammering may lead to local deformation.
