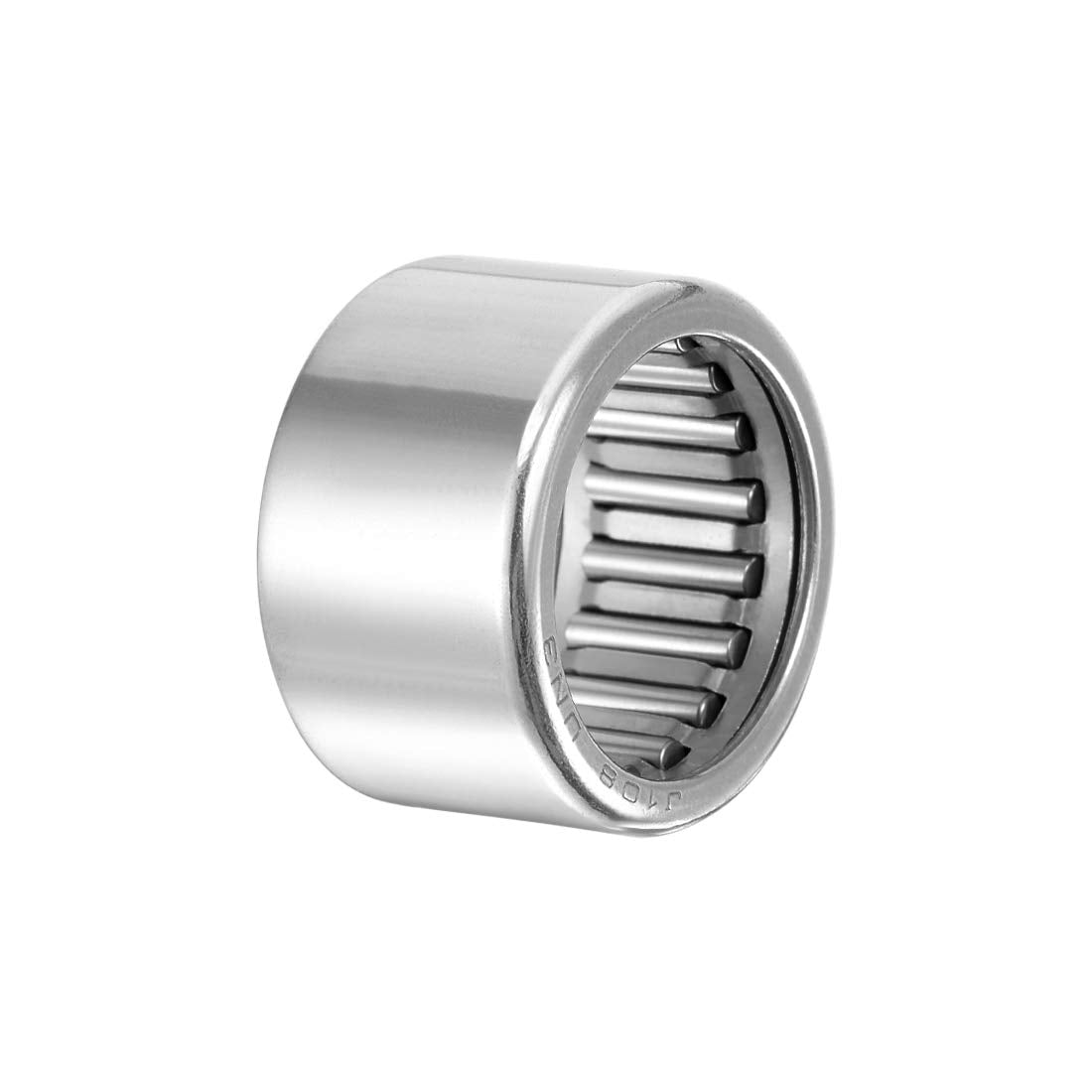

SCE108 Needle Roller Bearings, Drawn Cup Open End, 5/8-inch Bore 13/16-inch OD 1/2-inch Width 12000N Static Load 8100N Dynamic Load

Key Features

• Model SCE108 (I.D. (Fw)= 5/8", O.D. (D)= 13/16", Width (C)= 1/2")
• ST14 Steel Drawn Cup, ST13 Steel Cage, GCr15 Needle Rollers
• Good heat tolerance, high load carrying capacity and stiffness
• Low cross section, enable downsizing and suit for use in restricted mounting spaces
• Pre-Lubricated. Good running properties

Product Description

Specification:Model: SCE108Drawn Cup Material: ST14 SteelCage Material: ST13 SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 5/8" / 15.875mmOutside Diameter (D): 13/16" / 20.638mmWidth: 1/2" / 12.7mmDynamic Load Rating: 8100NStatic Load Rating: 12000NNumber of Pack: 1 Pcs

Description

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

NOTE

Install with press machine or special tools instead of hammers because beating may lead to local deformation.
