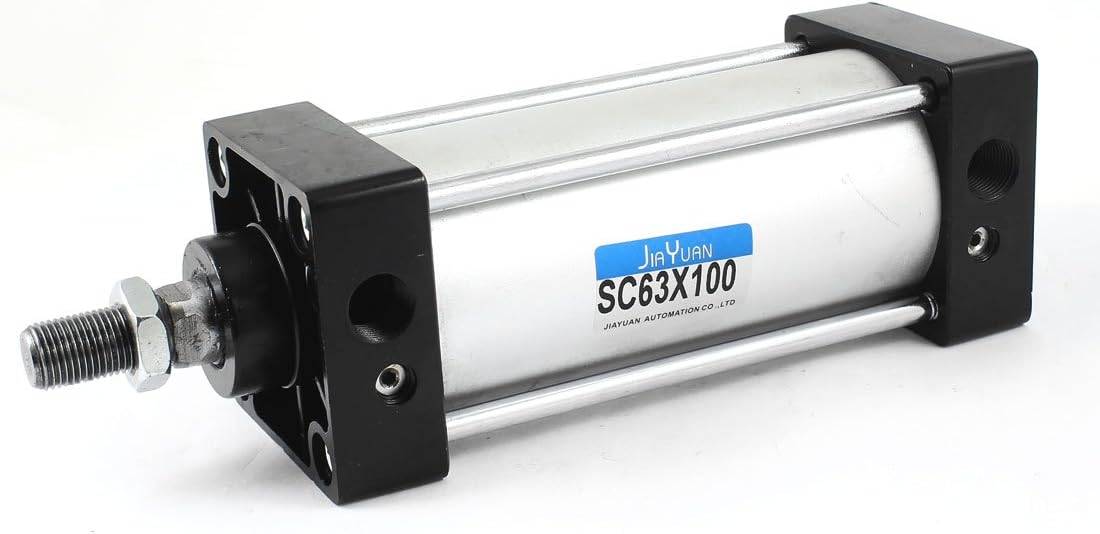

SC63x100 Single Rod Double Action Pneumatic Air Cylinder

Key Features

• Product Name Air Cylinder;Model SC63x100;Acting Mode Double
• Rod Type Single;Working Medium Air;Max Pressure 0.1-9 MPa
• Bore 63mm/ 2.5";Stroke 100mm/ 3.9";Screw Shaft Dia 16.7mm/ 3/8"
• Thread Hole Dia 16mm/ 0.62";Overall Size 7.5 x7.5 x 25cm / 2.9" x 2.9" x 9.8"(L*W*H);Material Aluminium Alloy
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

Features

63mm bore and 100mm stroke, double action and single rod, 0.1-9Mpa. Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise. With self-lubricating bearing, the piston rod is lubrication free. It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.

Specifications
