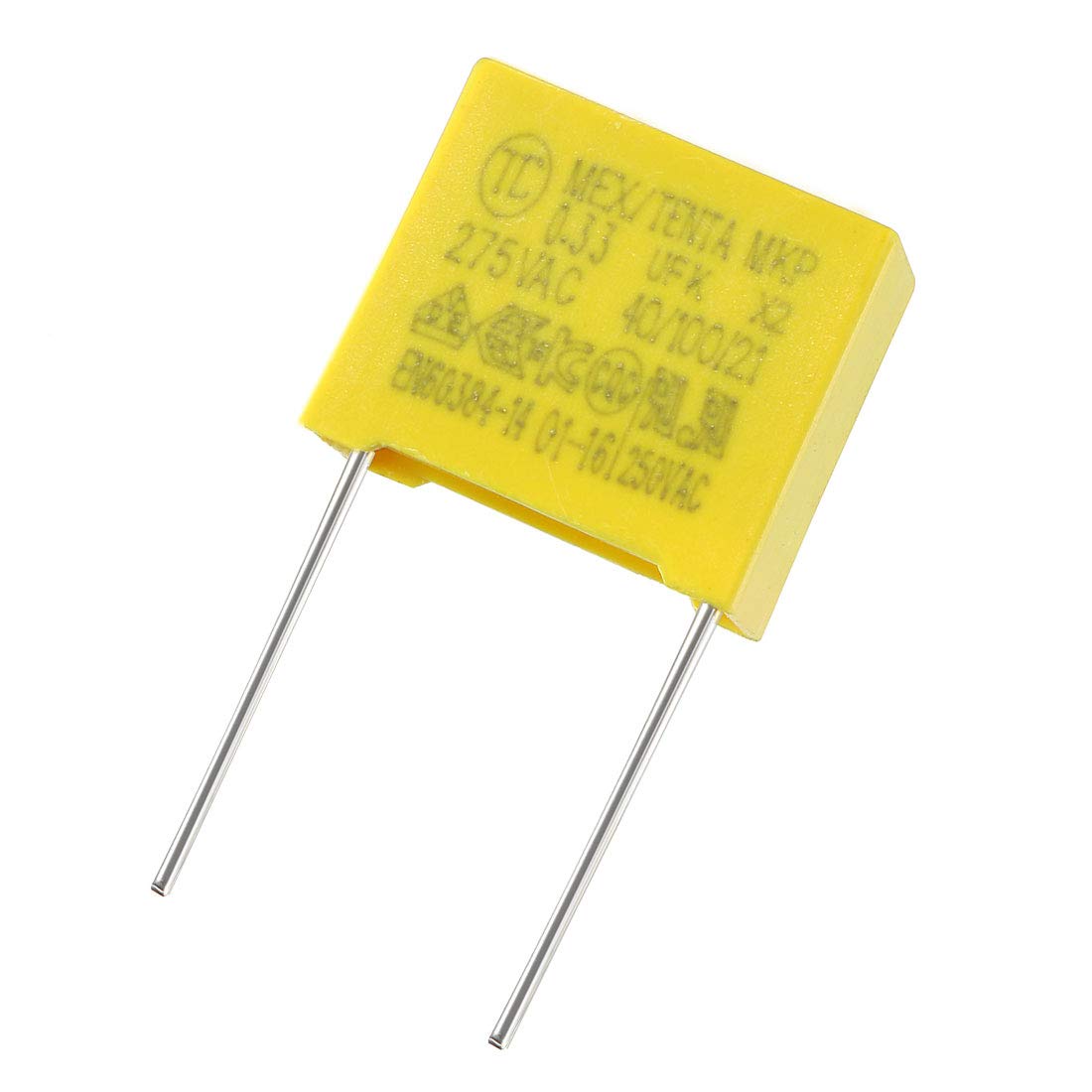

Safety Capacitors Polypropylene Film 0.33uF 275VAC X2 MKP 5 Pcs

Key Features

• Capacitance 0.33uF; Tolerance K(±10%); Withstand Voltage 275V AC.
• Lead Size (Approx.) 0.8 x 18mm / 0.03 x 0.71inch; Pin Pitch (Approx.) 14.5mm / 0.57inch.
• Performance Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.
• Durable Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.
• Application Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.

Product Description

Description

• X2 Series safety capacitor features dip mounting type and compact size.* Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.* Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.* It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements.* Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance. Specification: * Product Name: Safety Capacitor* Model: 275V334P15* Color: Yellow* Material: Polypropylene, Metal* Shape: Rectangle* Withstand Voltage: 275V AC* Rated Voltage: 250V AC* Capacitance: 0.33uF* Tolerance: K(±10%)* Temperature Characteristic: 40/100/21* Lead Type: Radial Direction* Lead Shape: S* Lead Size (Approx.): 0.8 x 18mm / 0.03 x 0.71inch* Pin Pitch (Approx.): 14.5mm / 0.57inch* Body Size (Approx.): 17.9 x 14.2 x 8.2mm / 0.71 x 0.51 x 0.32inch (L*W*T)

Package Content

• x Safety Capacitors
