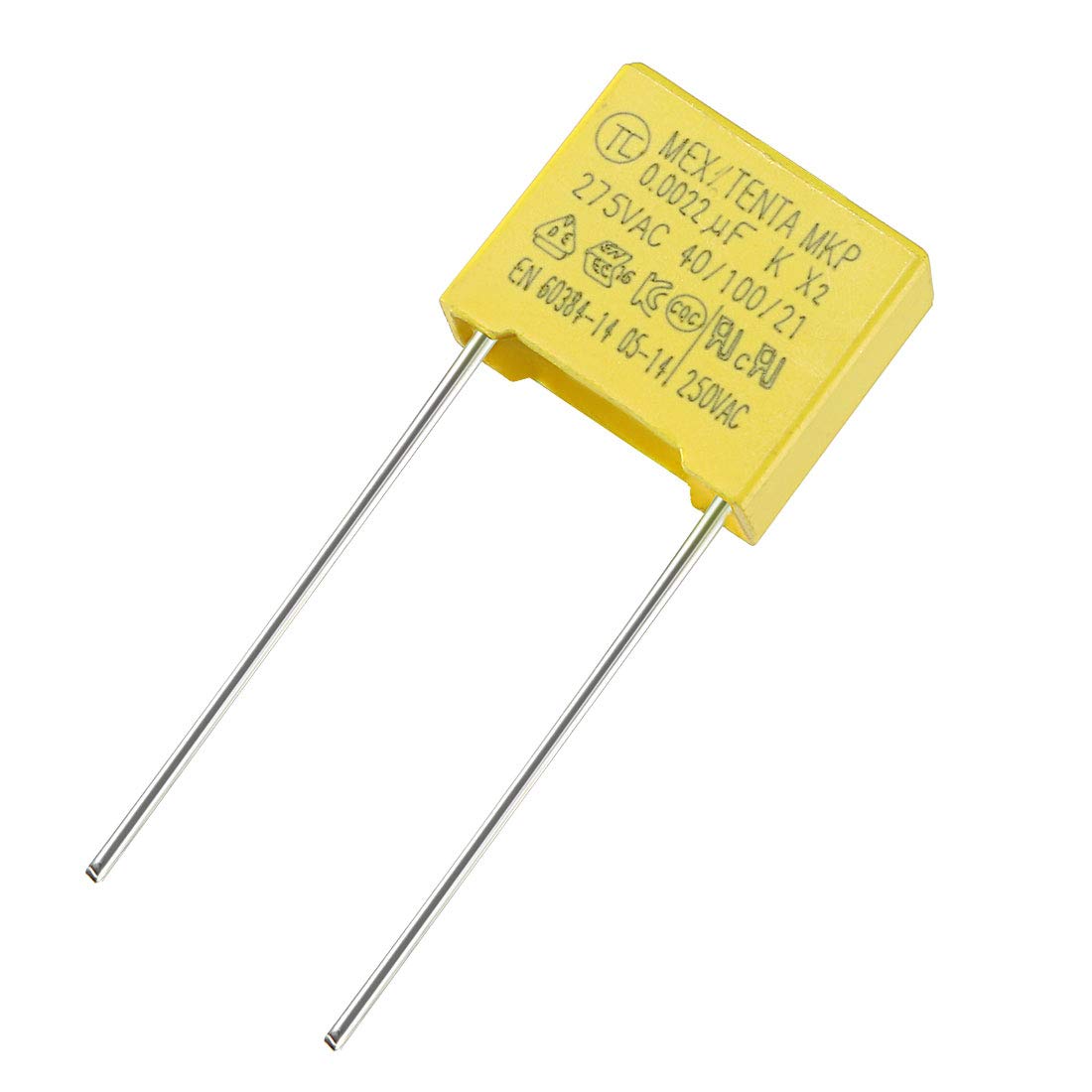

Safety Capacitor Polypropylene Film 2200pF 275VAC X2 MKP 10 Pcs

Key Features

• Capacitance 2200pF; Tolerance K(±10%); Withstand Voltage 275V AC.
• Lead Size (Approx.) 0.5 x 23mm / 0.02 x 0.9inch; Pin Pitch (Approx.) 10mm / 0.39inch.
• Performance Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.
• Durable Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.
• Application Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.

Product Description

Description

• X2 Series safety capacitor features dip mounting type and compact size.* Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.* Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.* It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements.* Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance. Specification: * Product Name: Safety Capacitor* Model: 275V222P10* Color: Yellow* Material: Polypropylene, Metal* Shape: Rectangle* Withstand Voltage: 275V AC* Rated Voltage: 250V AC* Capacitance: 2200pF* Tolerance: K(±10%)* Temperature Characteristic: 40/100/21* Lead Type: Radial Direction* Lead Shape: S* Lead Size (Approx.): 0.5 x 23mm / 0.02 x 0.9inch* Pin Pitch (Approx.): 10mm / 0.39inch* Body Size (Approx.): 12.7 x 11 x 4.8mm / 0.5 x 0.43 x 0.19inch (L*W*T)

Package Content

• x Safety Capacitors
