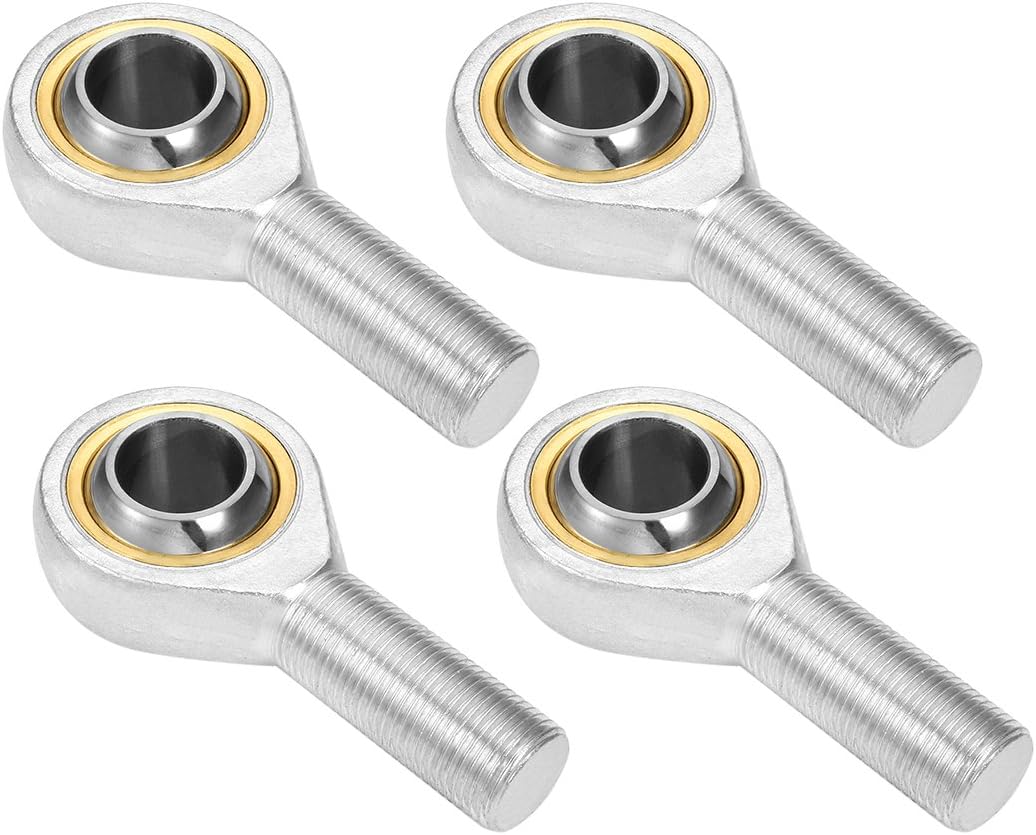

SA5T/K, Rod End Bearing, 5mm Inside Dia Economy Self Lubricating Male Right Hand 4pcs

Key Features

• THREAD DIAMETER M5.
• FEATURES 5mm Bore Self Lubricating Male Right Hand..
• INSTAL Large load capability,easy mounting and dismounting and mechanism simplification.
• STEEL BALL Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
• APPLICATION Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.

Product Description

1. Self-lubricating. Machined carbon steel housing and white zinc female shank with right hand threads2. Spherical rod end bearing for transferring motion between widely separated points.3. It has characteristics of large load capability,easy mounting and dismounting and mechanism simplification.4. Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.5. Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.Specification:Product Name: Rod End Bearing

Package Content

4pcs x Rod End BearingMaterial: Carbon Steel,White Zinc PlatedColor: Silver ToneOutside Diameter: (Head)18mmInside Diameter: (Bore)5mmWeight: 61gModel: SI5T/KThread Diameter: M5(RH)Total Length: 42mmUlt. Static Radial Load: 6KNMaximum Angular Misalignment: 13 DegreeCenter Of Ball To Bottom Of Shank: 33mmLength Through Bore: 8mmThread Length: 19mm
