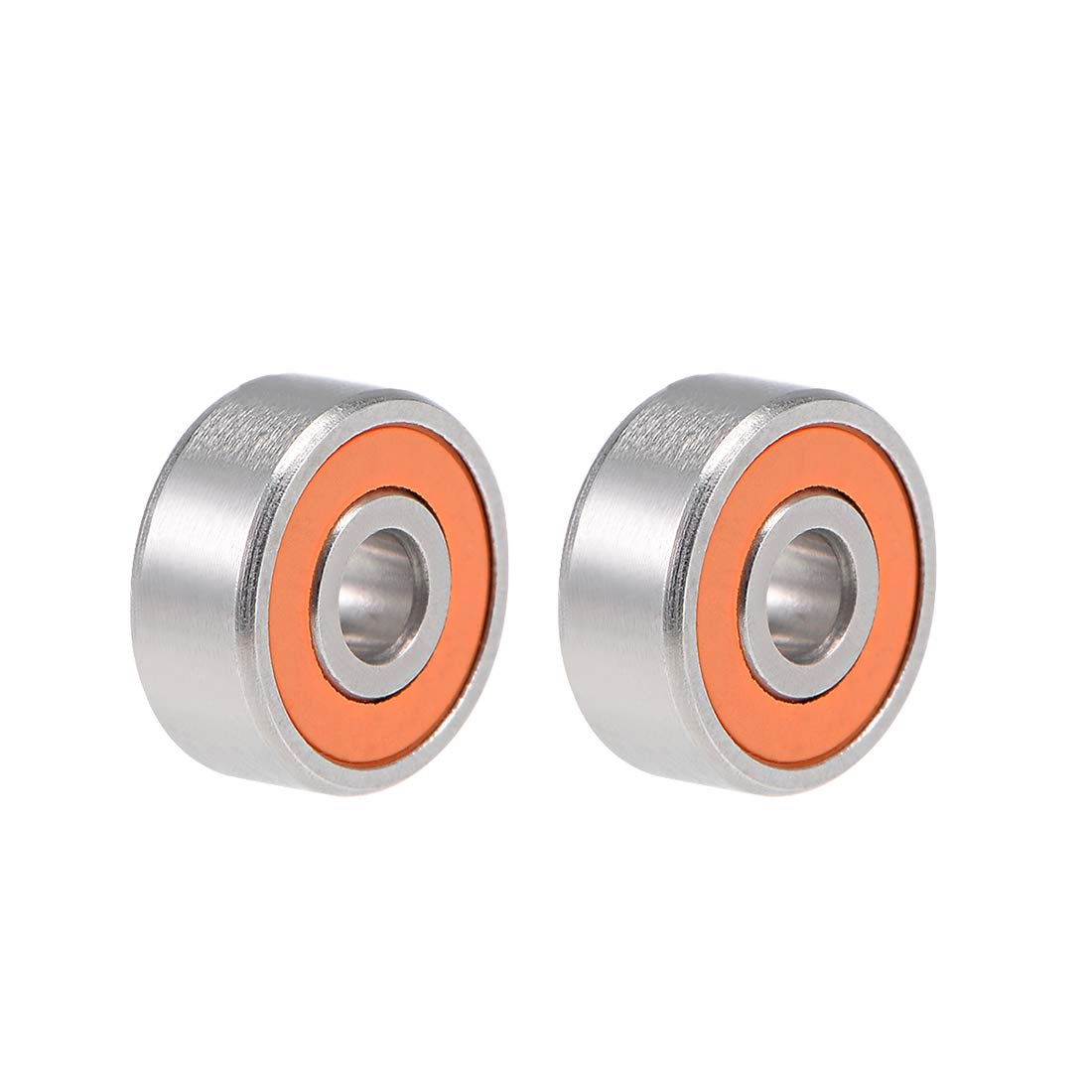

S623C-2OS Hybrid Ceramic Ball Bearing 3x10x4mm Stainless Steel Bearings 2pcs

Key Features

• S623C-2OS (I.D.=3mm, O.D.=10mm, Thickness=4mm)
• s623c-2os bearings are sealed on BOTH SIDES to keep lubricant in
• Stainless steel races for durability and corrosion resistance
• ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
• Static load rating of 73 newtons and dynamic load rating of 206 newtons

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, high accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.The limit speed of hybrid ceramic ball bearing can reach more than 1.3 times of chrome steel bearing of the same model.Hybrid bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.Suitable for work in high temperature environment and would not harm by magnetism or electricity.Suitable for all kinds of industrial equipment, micro motor, engine and fishing reel.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: S623C-2OSSeal Type: Double SealedInner Race/Outer Race Material: 440C Stainless SteelBall Material: CeramicInner Diameter (d): 3mmOuter Diameter (D): 10mmThickness (B): 4mmDynamic Load Rating (Cr): 0.64kNStatic Load Rating (Cor): 0.23kNAccuracy Class: P0 (ABEC-1)Noise Level: Z1Number of Pack: 2 Pcs
