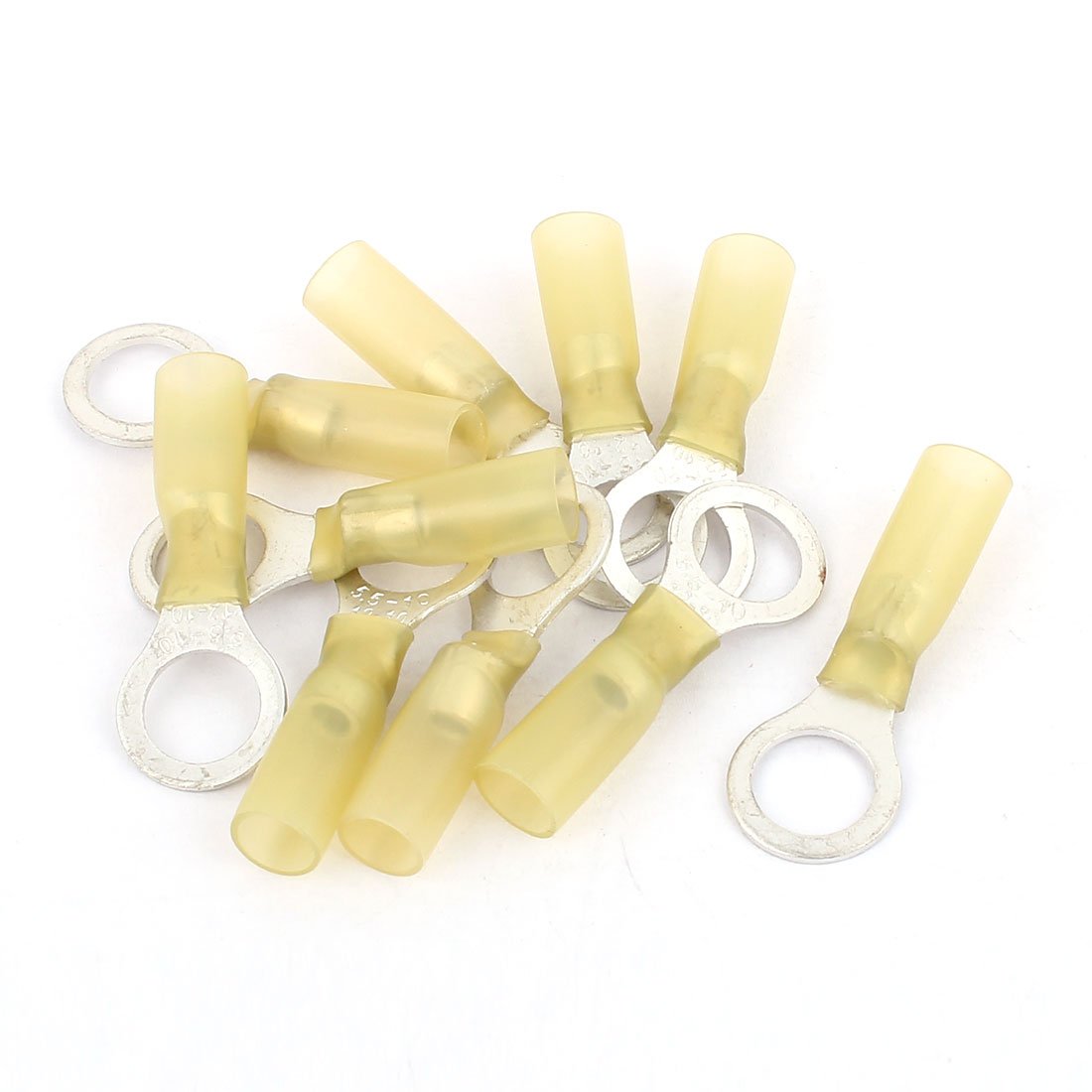

RV5.5-10 Heat Shrink Electrical Connectors Shrinkable Wire Solder Terminals AWG 12-10 with 10 Piece, Yellow

Key Features

• Product name wire solder terminal, model RV5.5-10, design crimp ring Type
• Material plastic, metal, color Silver Tone, Yellow, fit cable Size 4 - 6mm2(a.W.G 12-10)
• Ring Hole DIA 10mm/ 0.4", tube inner diameter 7mm/ 0.28", total Length 42mm/ 1.65"
• Max. Current 48A, shrink Ratio 31
• Weight 25G, package content 10 pcs x wire solder terminal

Product Description

DESCRIPTION

1. Durable insulated crimp terminals.2. Made with heat shrink material.3. When properly heated and shrunk, they provide a seal that is resistant to water, steam, salt and other contaminants.4. Heat shrink insulated connectors will provide improved pullout strength and strain Relief.5. Excellent splice for marine, automotive, outdoor, or harsh environment use.6. The translucent heat shrink material allows for visual inspection of the connection, and has the wire gauge printed on it.7. Crimp style with a true plated copper core.8. Made with heat shrink tubing.
