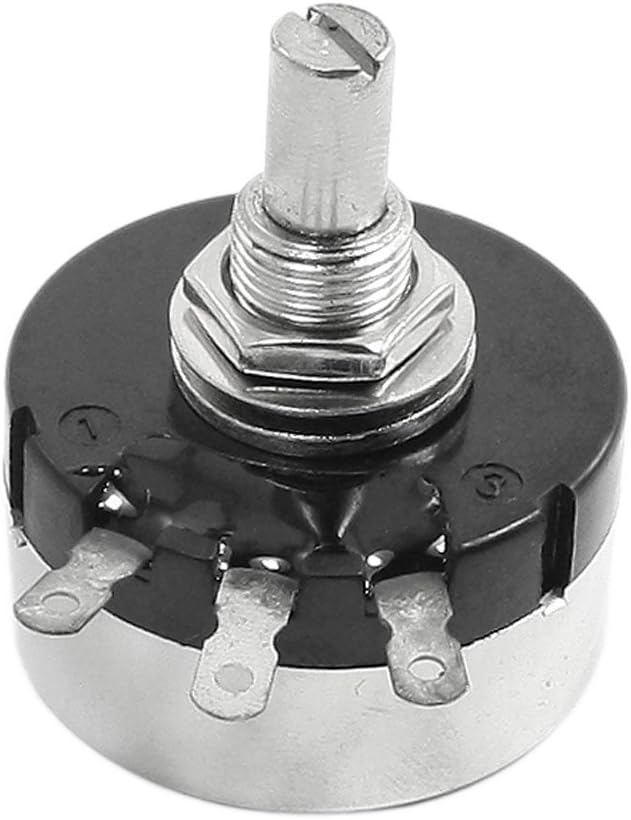

RV30YN20S 500 ohm B501 Single Turn Carbon Rotary Taper Potentiometer

Key Features

• Product Name Potentiometer;Model RV30YN20S;Technology Carbon Composition;Resistance Value 500 ohm
• Turn Number Single Turn (Type B);Adjustment Type Top Adjustment;Features Round Shaft
• Terminals Number 3;Body Size 30 x 16mm / 1.2" x 0.63"(D * H);Screw Thread Dia. 8.6mm / 0.33"
• Shaft Diameter 6mm / 0.24";Shaft Length 10mm / 0.4";Total Length 36mm / 1.4"
• Color Black, Silver Tone;Net Weight 27g;Package Content 1 x Carbon Potentiometer

Product Description

3 Terminals, Single Turn, Carbon Rotary Taper Potentiometer.Main used to control electrical devices such as volume controls on equipment.Knurled shaft with split design for push-on knob.
