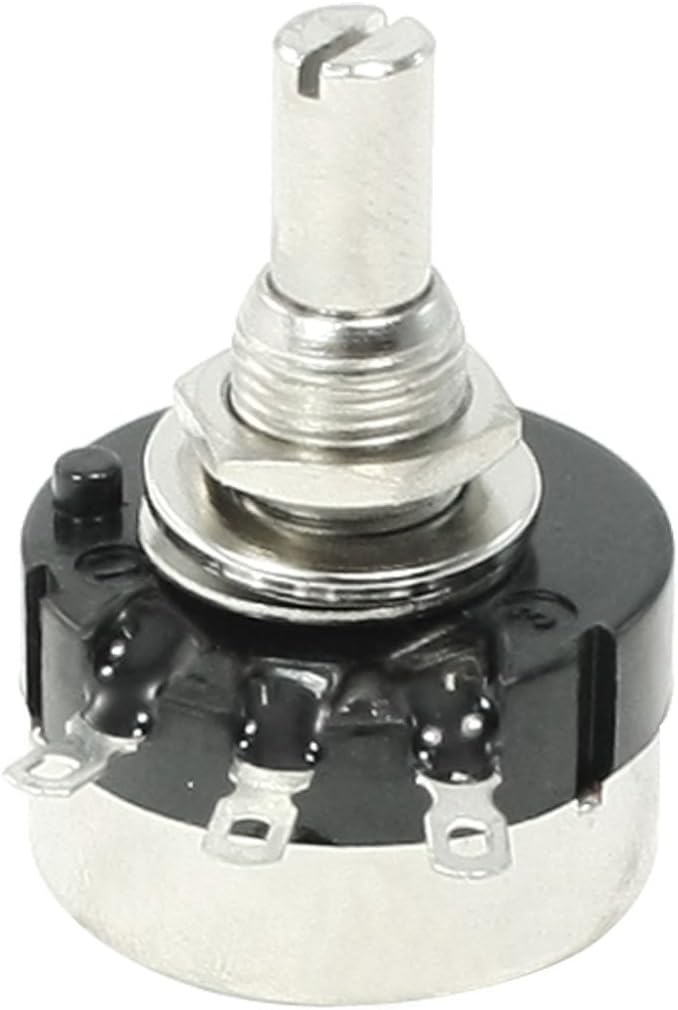

RV24YN20S/B103 10K ohm 6mm Round Shaft Carbon Film Rotary Taper Potentiometer

Key Features

• Product Name Carbon Potentiometer;Model RV24YN20S/B103;Technology Carbon Composition;Resistance Value 10K ohm
• Tolerance 5%;Turn Number Single Turn;Terminals Number 3
• Features Round Shaft;Body Size 24 x 14mm / 0.9" x 0.55"(D * H);Screw Thread Dia. 9mm / 0.35"
• Shaft Diameter 6mm / 0.24";Shaft Length 10mm / 0.4";Total Length 34mm / 1.3"
• Color Black, Silver Tone;Net Weight 20g;Package Content 1 x Carbon Rotary Potentiometer

Product Description

About this item Product Name : Carbon Potentiometer;Model : RV24YN20S/B103;Technology : Carbon Composition;Resistance Value : 10K ohm Tolerance : 5%;Turn Number : Single Turn;Terminals Number : 3

Features

Round Shaft;Body Size : 24 x 14mm / 0.9" x 0.55"(D * H);Screw Thread Dia. : 9mm / 0.35" Shaft Diameter : 6mm / 0.24";Shaft Length : 10mm / 0.4";Total Length : 34mm / 1.3" Color : Black, Silver Tone;Net Weight : 20g;

Package Content

1 x Carbon Rotary Potentiometer ›
