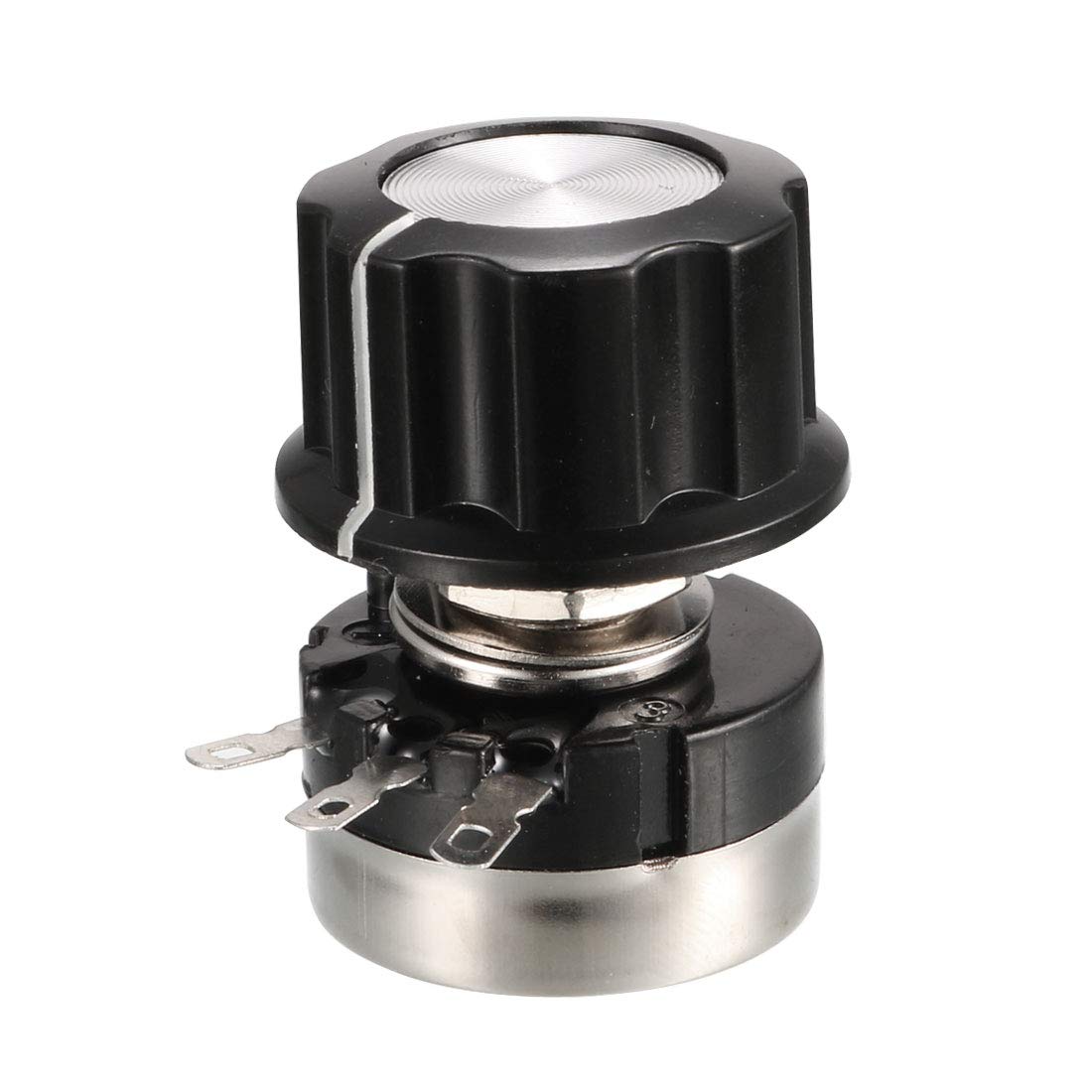

RV24YN20S B102 1K Ohm Resistor 3 Soldering Terminals Wire Wound Potentiometer

Key Features

• Product Name Carbon Potentiometer;Model RV24YN 20S/B102;Technology Carbon Composition;Resistance Value 1K ohm
• Tolerance 5%;Turn Number Single Turn;Terminals Number 3
• Features Round Shaft;Body Size 25 x 15mm / 1" x 0.6"(D * H);Screw Thread Dia. 9mm / 0.35"
• Shaft Diameter 6mm / 0.24";Shaft Length 10mm / 0.4";Total Length 34mm / 1.34"
• Color Black, Silver Tone;Net Weight 26g;Package Content 1 x Carbon Potentiometer,1 x Rotary Knob

Product Description

Specifications

Description

Features

1K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.Top adjustment type and knurled shaft for easy operate in daily use time.Main used to control electrical devices such as volume controls on equipment.Knurled shaft with split design for push-on knob.
