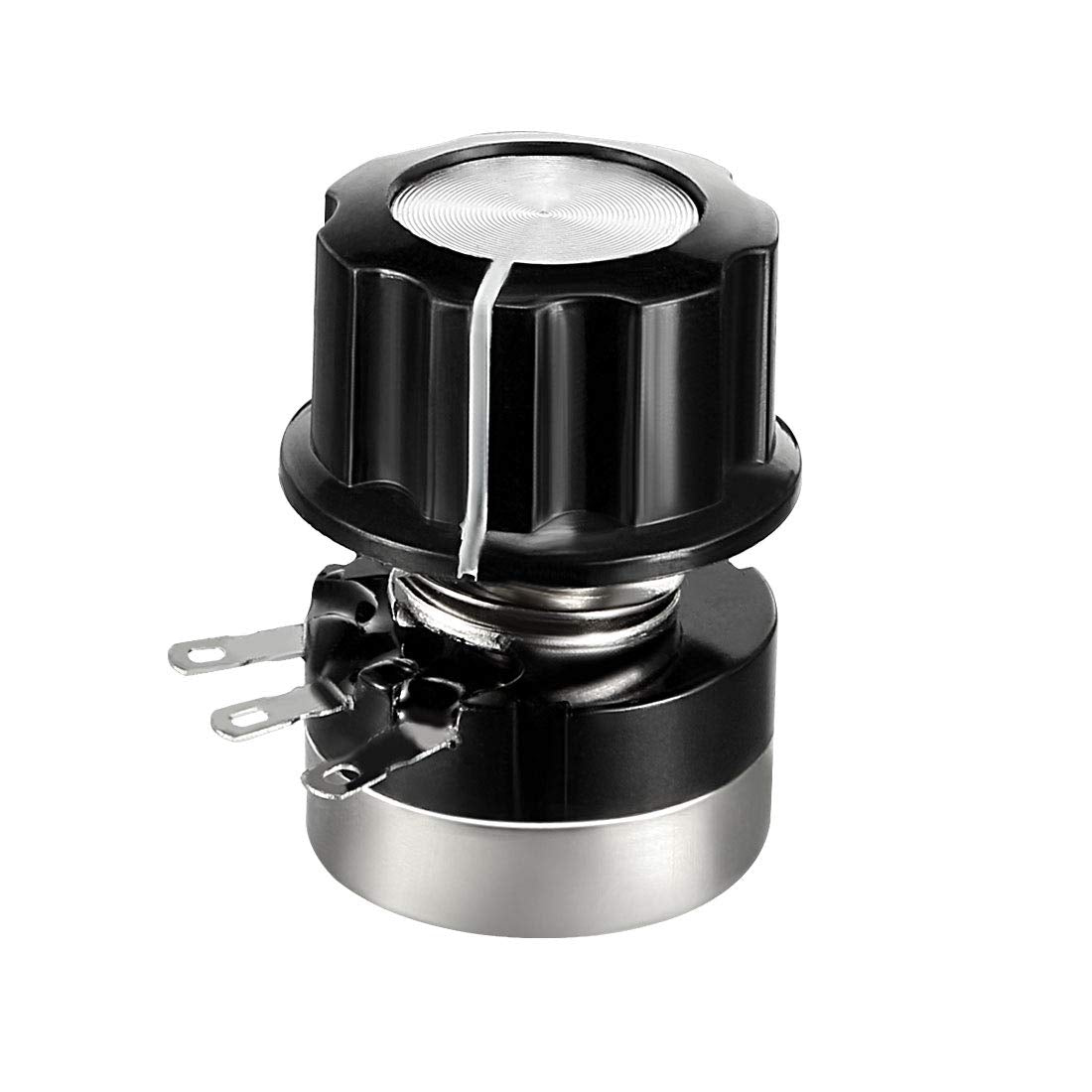

RV24YN20S 50K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer w Knob
Key Features
- Model RV24YN 20S/B503,, metal corrosion resistant, high mechanical strength
- Resistance Value 50K Ohm Tolerance+/-10%
- Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
- Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
- Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
Product Description
Product Name: Carbon Film PotentiometerModel: RV24YN 20S/B503Material: Carbon film MetalResistance Value: 50k ohmPower: 2WTolerance: +/-10%Turn Number: Single TurnTerminals Number: 3
Features
Round ShaftTotal Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)Screw Thread Dia.: 8.7mm/0.34 inchShaft Diameter: 6mm / 0.24 inchShaft Length(do not include the Screw Thread parts): 10mm / 0.4 inchShaft Total Length 20.5mm/0.8 inchRotary Knob Size: 15 x 27mm/0.6 x 1.1inch (H*Max.D)Color: Black, Silver Tone
Package Content
1 x Carbon Film Potentiometer with Knob
Features
50K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.
Specifications
| Item Weight | 1.09 ounces |
| Product Dimensions | 5.51 x 3.94 x 1.57 inches |
