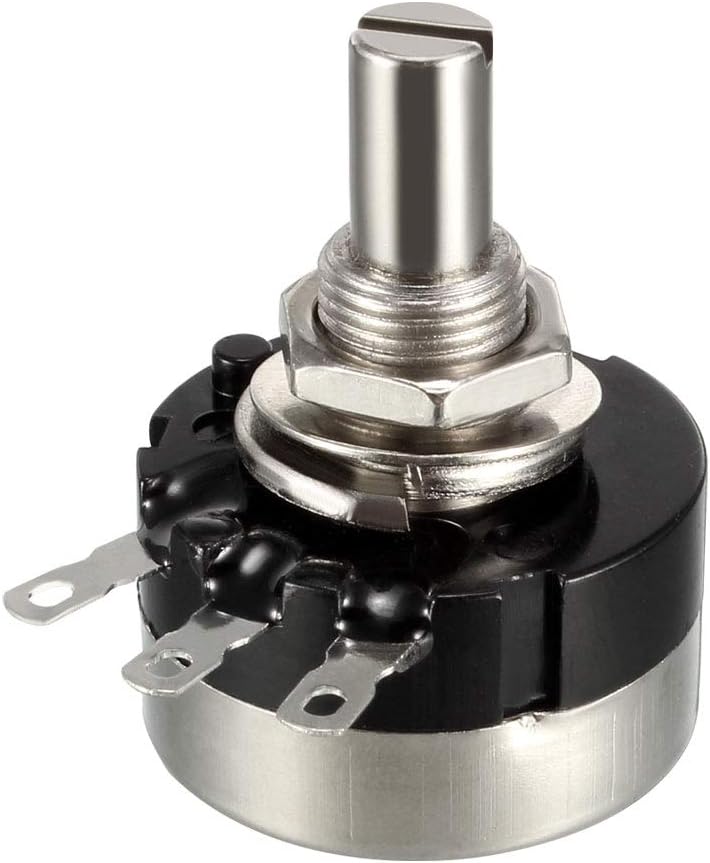

RV24YN20S 2K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer

Key Features

• Model RV24YN 20S/B202,, metal corrosion resistant, high mechanical strength
• Resistance Value 2K Ohm Tolerance+/-10%
• Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
• Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
• Top adjustment type and knurled shaft for easy operate in daily use.

Product Description

Product Name: Carbon Film PotentiometerModel: RV24YN 20S/B202Material: Carbon film MetalResistance Value: 2K ohmPower: 2WTolerance: +/-10%Turn Number: Single TurnTerminals Number: 3

Features

Round ShaftTotal Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)Screw Thread Dia.: 8.7mm/0.34 inchShaft Diameter: 6mm / 0.24 inchShaft Length(do not include the Screw Thread parts): 10mm / 0.4 inchShaft Total Length 20.5mm/0.8 inchColor: Black, Silver Tone

Package Content

1 x Carbon Film Potentiometer

Features

2K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.
