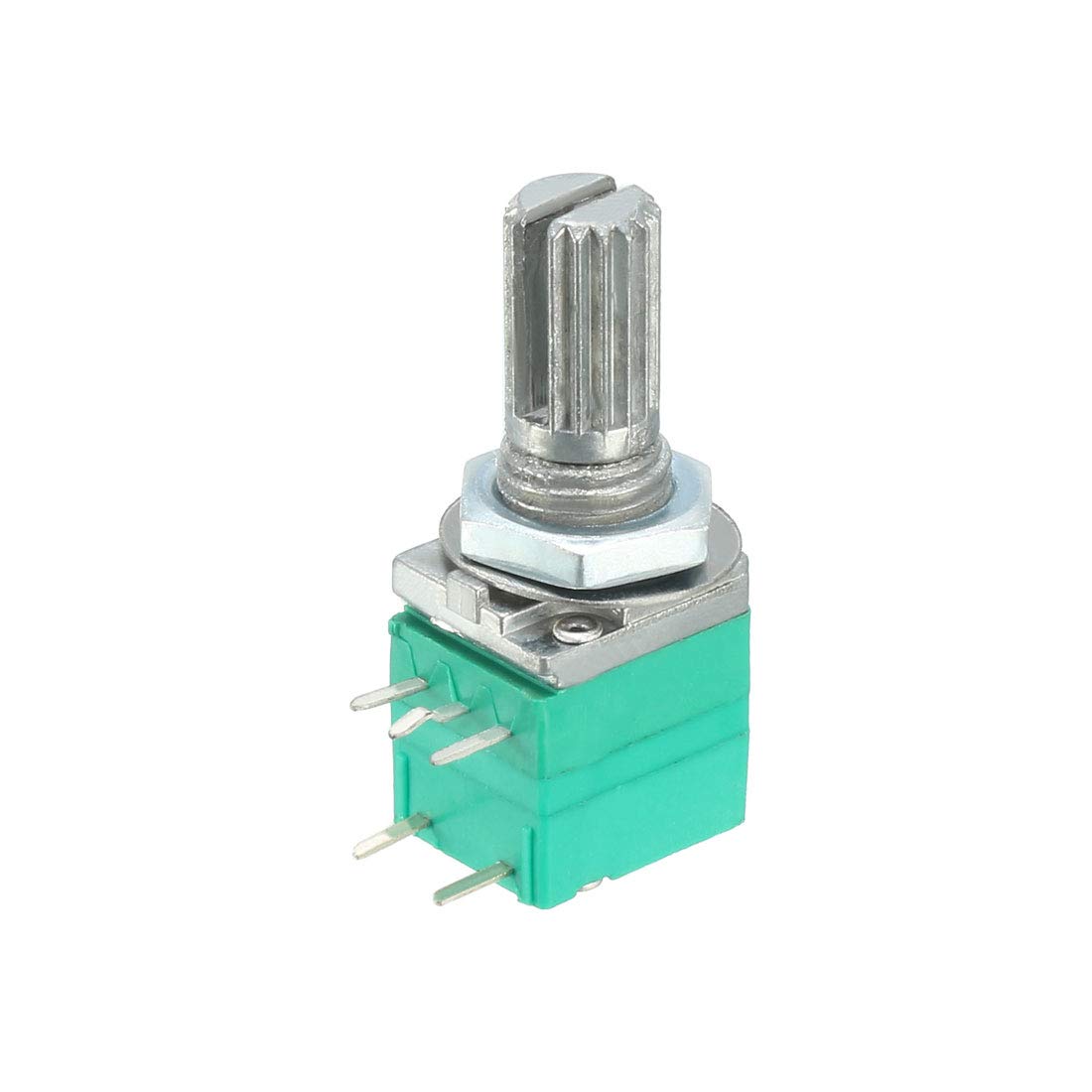

RV097NS 10K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer
Key Features
- Model RV097NS
- Package Content 1 x Carbon Film Potentiometer
- Resistance Value 10K Ohm Tolerance+/-10%
- Total Size 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)
- Top adjustment type and knurled shaft for easy operate in daily use.
Product Description
Product Name: Carbon Film PotentiometerModel: RV097NSMaterial: Carbon film MetalResistance Value: 10K ohmTolerance: +/-10%Turn Number: Single TurnTerminals Number: 5
Features
Round ShaftTotal Size: 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)Screw Thread Dia.: 6.5mm/0.26 inchShaft Diameter: 6mm/0.24 inchShaft Length(do not include the Screw Thread parts): 10mm/0.39 inchShaft Total Length: 15mm/0.59 inch
Package Content
1 x Carbon Film Potentiometer
Features
10K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.
Specifications
| Product Dimensions | 5.51 x 3.94 x 0.79 inches |
