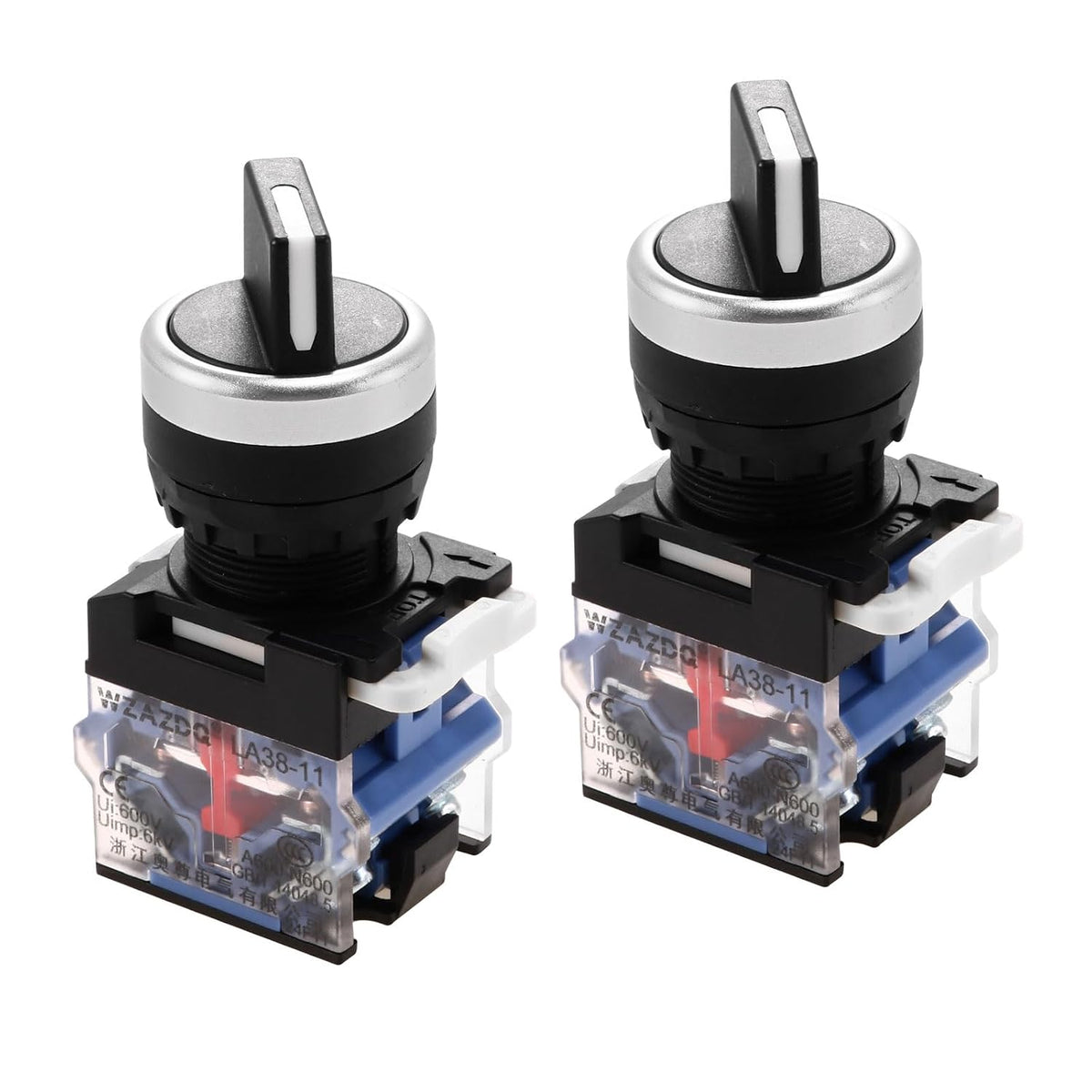

Rotary Selector Switch 2 Positions 1NO+1NC Self-Lock Latching AC 660V 10A 22mm Panel Mount (Set of 2)

Key Features

• These selector switches are available in two-position models
• Self-locking with 1 normally open and 1 normally closed contacts
• Contact blocks are color coded for easy identification green for normally open, red for normally closed
• Simply drill an 22mm (7/8") hole and secure it with the screw ring
• Selector switch can be used with electric oven, juicer, electric heater, blower, range hood, humidifier, massage equipment, heaters and other appliances

Product Description

Description

-Selector switches use cams in combination with contact blocks to provide a wide range of circuit openings and closings.-Selector switches are often used when more than one control option is needed (e.g. Hand-Off-Auto).-This 22 mm selector switch is modularly designed to make assembly.-Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits. Specification:Rated Voltage: AC 660VRated Current: 10AAction Type: Latching (Self-Locking)Positions: 2Contacts Type: 1 Normally Open and 1 Normally ClosedTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 22mm / 7/8"Overall Size: 77 x 37 x 30mm / 3.03" x 1.46" x 1.18" (L*W*H)
