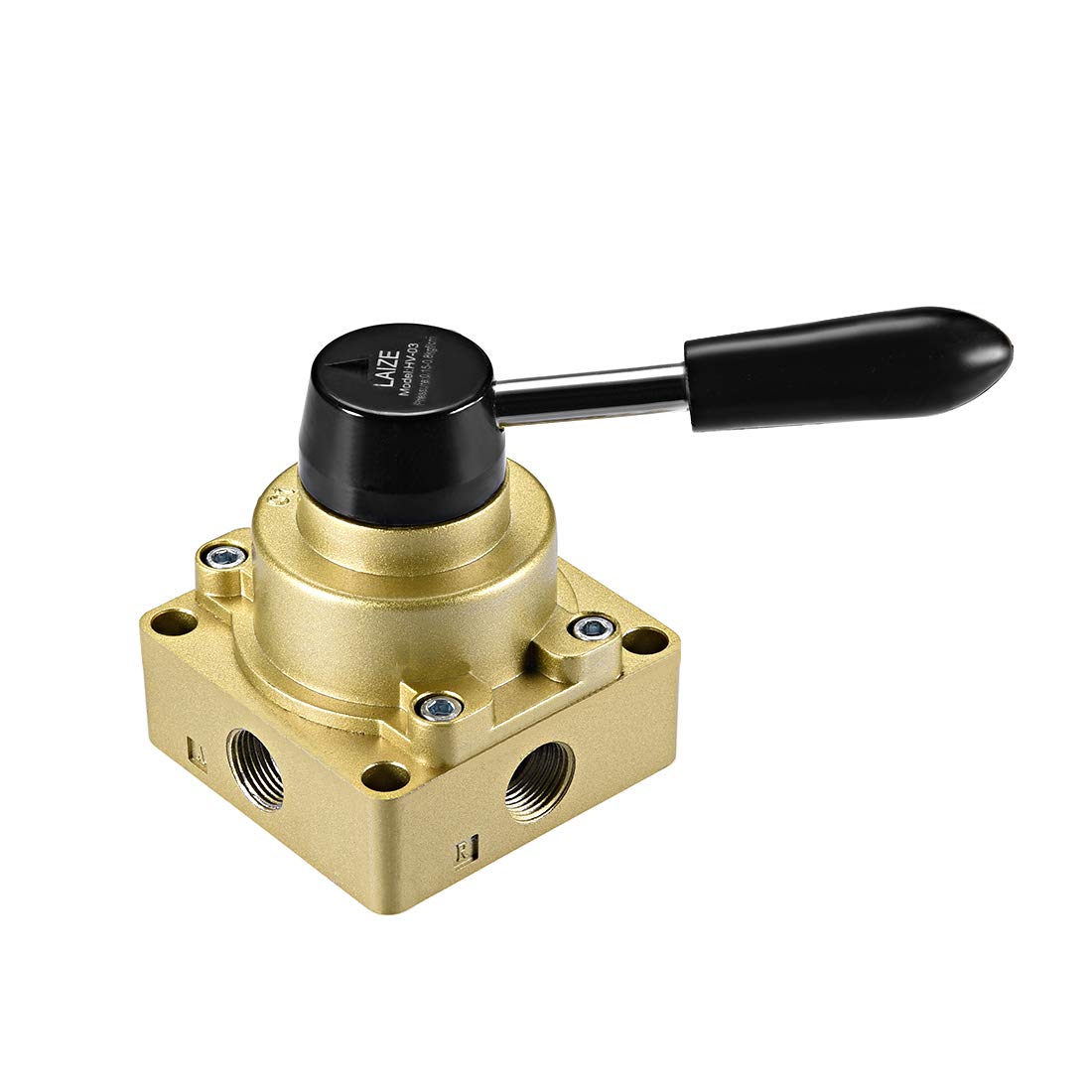

Rotary Lever Hand Valve, HV-03 G3/8 Female 3 Position 4 Ways Air Flow Control
Key Features
- Rotary Lever Hand Valve is 3 Position 4 Ways 3/8" G Female; P hole Input, A&B hole Output, R hole exhaust
- A tactile detented hand lever can be used to open and change the direction of flow.
- Positions are marked "N" as the closed center, and "0.1" and "0.2" as the two open positions.
- A closed center means the valve will not allow the flow of air in its center position.
- Application of these control valves are suitable for any pneumatic task, from DIY projects at home to burly industrial use
Product Description
Product
Features
Product Name : Rotary Lever Hand ValveModel : HV-03Net Weight : 417gColor : Gold Tone, BlackMaterial : Aluminum alloyType : 3 Position 4 WaysFemale Thread Size : 3/8" G Surface treatment: electroplatingOperating Pressure : 0~0.8MPaOperating temperature：-20 ~ +70 Degree Celsius;Dimension : 73mm x73mm x 84mm / 2.87-inch x 2.87-inch x 3.31-inch(L x W x H）
Package Content
1pcs x Pneumatic Foot Valve
Description
1.The steering handle is sensitive: the reversing rotation is light, the hand feels good, and the positioning is accurate.2.Long service life: low starting air pressure, standard thread standard, tight connection and no air leakage, long service life3.Professional manufacturing: materials made of aluminum alloy, outer surface oxidation treatment, good pressure and wear resistance4.Three-speed adjustment: clear gear position marking, often used to control the reversal of actuators and other actuators in the middle of the commutation
Specifications
| Product Dimensions | 3.94 x 3.94 x 3.94 inches |
