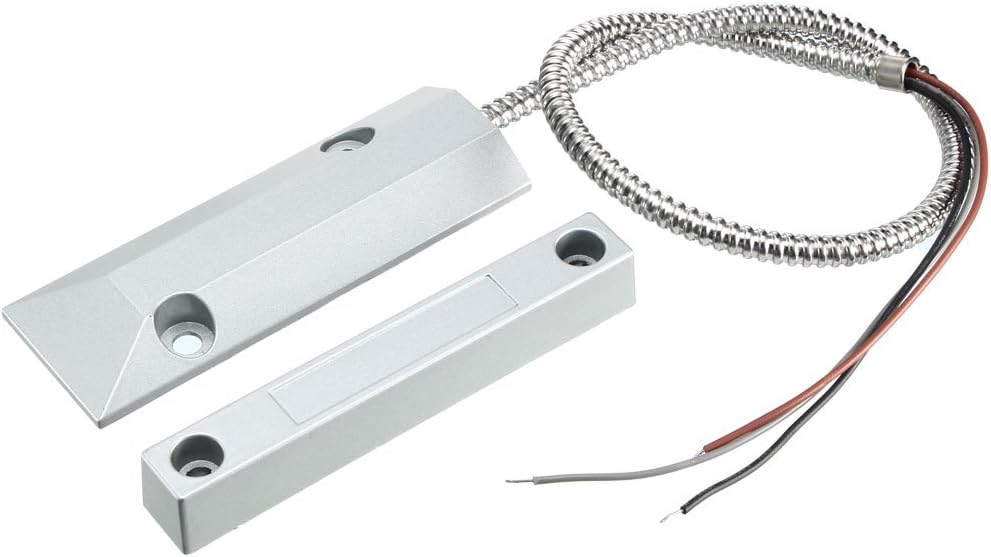

Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications OC-55

Key Features

• [Specification] - Current 0.5A ; Voltage 100V ; Power Rating 10W; Action Distance 40~50mm
• [Dimension] - Cable Length 48.5cm/19.1"; Total Size 106 x 37.3 x 9.7mm, 106 x 15 x 15mm (L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
• [N.O./N.C.] - N.C. means Normally Closed When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Product Description

About this item [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 40~50mm [Dimension] - Cable Length: 48.5cm/19.1"; Total Size: 106 x 37.3 x 9.7mm, 106 x 15 x 15mm (L*W*H) [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully! [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc. ›
