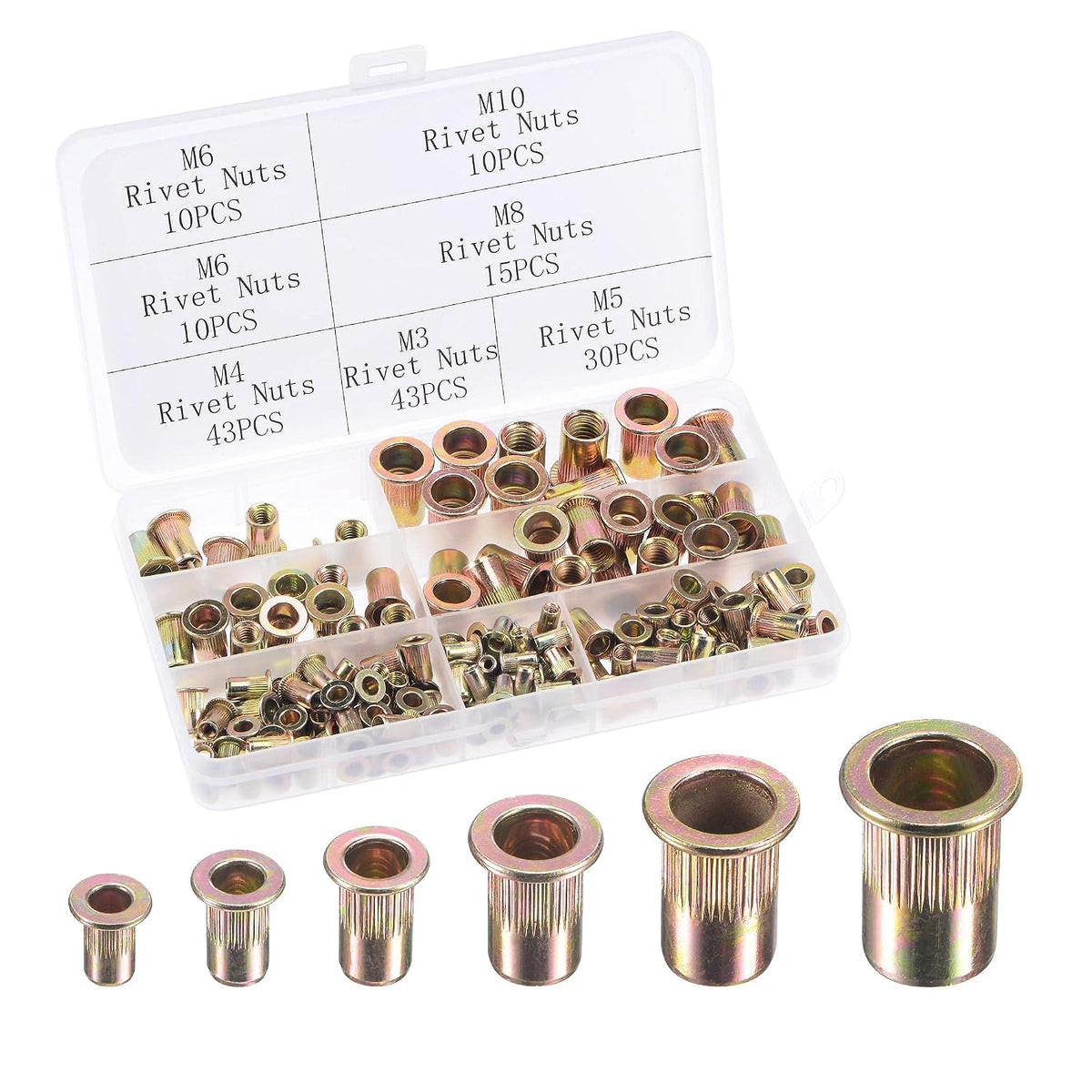

Rivet Nuts, 161pcs M3 M4 M5 M6 M8 M10 Carbon Steel Knurled Flat Head Threaded Insert Nut, Color-Zinc Plated Finish

Key Features

• 161pcs rivet nuts with various sizes in a durable transparent box, it contains 7 sizes selected for you, includes M3 x 43pcs, M4 x 43pcs, M5 x 30pcs, M6 x 20pcs, M8 x 15pcs, M10 x 10pcs.
• Mechanical internal thread, materials, uniform wall thickness, surface treatment, corrosion resistance, and high strength.
• Drill a hole according to the size of the rivet nut installation hole, insert the rivet nut, and tighten the locking nut with the rivet tool.
• Widely used in sheet metal, household thin iron cabinet, roof, equipment casing, etc.
• Widely used in metal sheets or non-metal plastic, wood, and other sheets, rivet nuts can be firmly fixed on the sheet to provide tight thread locking force.

Product Description

Feature:A Rivet Nut fastener is a tubular rivet with internal threads.The material is too thin to machine the thread.It requires a tool or device to install in seconds from one side of the work. The added benefit of not only being a dependable fastener, but they are also ready to use with clean threads available for screw attachments.Blind Rivet Nuts also are used when an application has little or no access to the backside as they can be installed from the front side of the workpiece.Specification:Material: Carbon SteelFinish: Color-Zinc PlatedSizes: (Length x Max.D x Drill Hole Size) M3 ------ 9mm x 8mm x 4.8mm/0.35" x 0.31" x 0.19" M4 ------ 11mm x 9mm x 5.8mm/0.43" x 0.35" x 0.23" M5 ------ 13mm x 9.8mm x 6.8mm/0.51" x 0.38" x 0.27" M6 ------ 15mm x 12.2mm x 8.8mm/0.59" x 0.48" x 0.34" M8 ------ 18mm x 14.5mm x 10.8mm/0.7" x 0.57" x 0.42" M10 ------ 20mm x 17mm x 12.8mm/0.78" x 0.66" x 0.50"

Package Content

Package Includes

M3 ------ 43pcs M4 ------ 43pcs M5 ------ 30pcs M6 ------ 20pcs M8 ------ 15pcs M10 ------ 10pcs plastic box -----1
