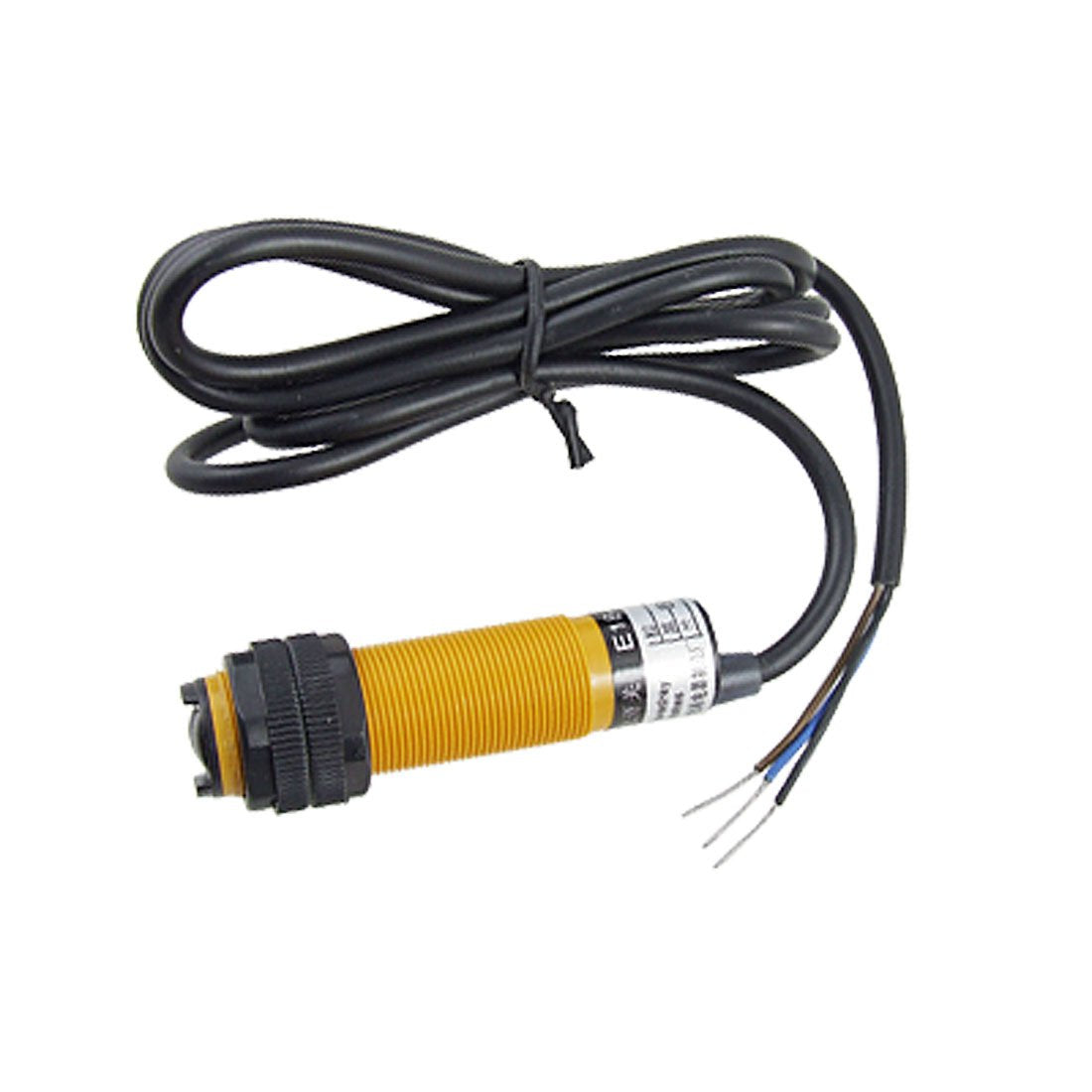

Retroreflective Photoelectric Switch Sensor with Reflector Panel, PNP NO DC 10-30V

Key Features

• Product Name Photoelectric Switch w Reflector;Sending Light Infrared Rays;Model E18-R2P1;Type PNP NO DC 3 Wire
• Retroreflective Type Retroreflective Type;Voltage DC 10-30V;Current 200mA;Sensory Distance 2m
• Head Diameter 1.6cm/0.6";Body Size 2.4 x 7.5cm/0.9" x 3" (Max.D*L);Reflector Panel Size 6.5 x 4 x 0.8cm/2.6'' x 1.6'' x 0.3'' (L*W*T)
• Material Plastic;Color Yellow, Black;Cable Length 120cm/47"
• Weight 70g;Package Content 1 x Photoelectric Switch;1 x Reflector Panel 1 x Reflector Panel

Product Description

A retro reflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed when the beam is interrupted and fails to REACH the receiver. Can be applied in security system, manufacturing industry.
