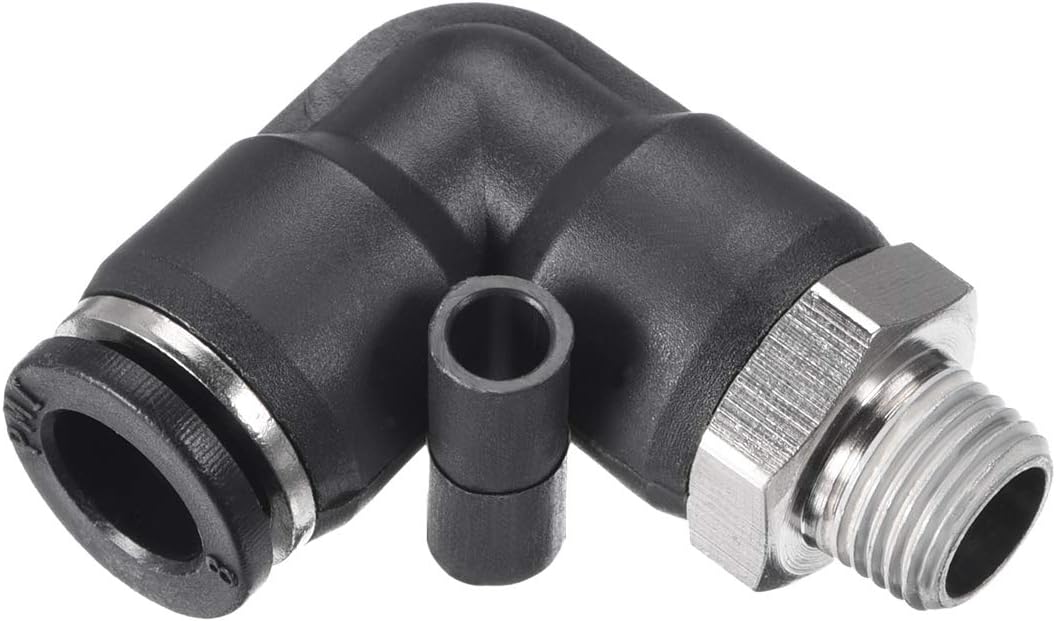

Push to Connect Tube Fitting Male Elbow 8mm Tube OD x G1/8 Thread Pneumatic Air Push Fit Lock Fitting 4pcs

Key Features

• 【UNIVERSAL DESIGN】- Product Name Elbow Push to Connect Fitting ; Type 90 Deg Swivel Elbow Male Connector ;Tube and Thread Size 8mm OD x G1/8" Male
• Operating Pressure 0-1MPa ; Operating temperature：-10 - 60 Degree Celsius
• 【GOOD DESIGN】- Push-to-connect tube connection on one end and male G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• 【ADVANTAGE】-Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 【APPLICATION】- Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Description

Product

Features

Product Name : Connect FittingModel : PL8-01Color : BlackNet Weight : 62gMaterial : Plastic,MetalMale Thread Type : G TypeType: 90 Deg Swivel Elbow Male ConnectorThread Size :G1/8" Tube Size (OD) : 0.31" / 8mm Operating Pressure : 0-1MPaOperating temperature：-10 - 60 Degree CelsiusDimension : 36mm x 30mm x 15mm / 1.42-inch x 1.18-inch x 0.59-inch (L x W x H)

Package Content

4pcs x Fitting

Description

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.2.Push-to-connect tube connection on one end and male G threads on the other end.3.A good release cap can withstand greater and stronger pressure without tripping.4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.6.The small tube is use for fixed. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Specifications
