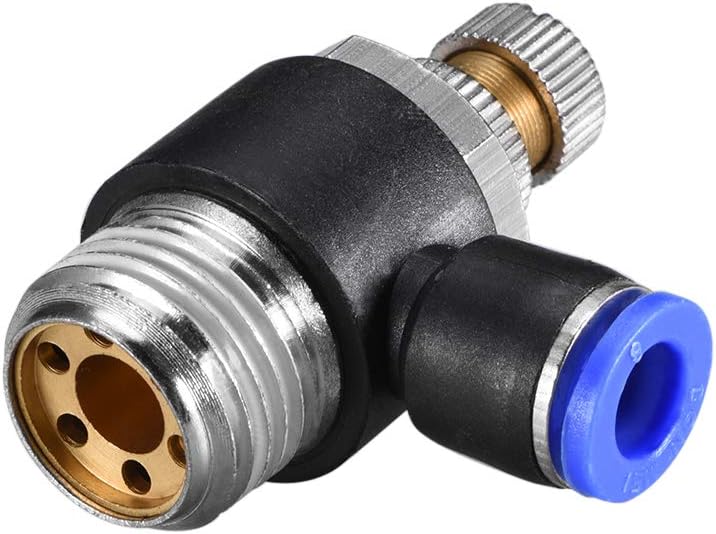

Push to Connect Air Flow Control Valve,Elbow,8mm OD x G1/2 Male Thread,Pneumatic Flow Speed Controller Valve,Blue

Key Features

• ►【SPECIFICATION】- pneumatic control valve model SL8-04 ;Body Style Elbow Speed Controller ; Tube and Thread Size 8mm Tube OD x G1/2" Male Thread
• ►【FEATURE】- The Pneumatic Flow Control has special adjustment needle design provides a high precision air flow adjustment. Knob for precise manual adjustment of flow rate
• ►【ADVANTAGE】- Air Flow Control Valve Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required
• ►【 MATERIAL】- Air Flow Controller Valve made in plastic,Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• ►【APPLICATION】- Air flow speed controller valve widely used in pneumatic piping's Series pneumatic inline air flow speed control valve push in Fitting equipped,connect with polyethylene, nylon and PU tubing.This Quick fittings are only used for industrial automatic apparatus

Product Description

Product

Features

Product Name : Air Flow Control Valve►【SPECIFICATION】- pneumatic control valve model : SL8-04Net Weight : 75gMaterial : Plastic,MetalColor : Black,BlueSurface Treatment : Spray paintOperating Pressure : 0-1MPaOperating temperature：0 - 60 Degree CelsiusBody Style : Elbow Speed ControllerThread Size : G1/2" Tube Size (OD) : 0.31"/ 8mm Dimension : 53mm x 43.7mm x 25.7mm / 2.09" x 1.72" x 1.01"(L x W x H )

Package Content

1pcs x Air Flow Control Valve

Description

1.Push in fittings, flow speed controller, used in pneumatic piping's Series pneumatic inline air flow speed control valve push in fitting equipped,connect with polyethylene, nylon and PU tubing.2.The special adjustment needle design provides a high precision air flow adjustment. Knob for precise manual adjustment of flow rate3.A good release cap can withstand greater and stronger pressure without tripping.4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Specifications
