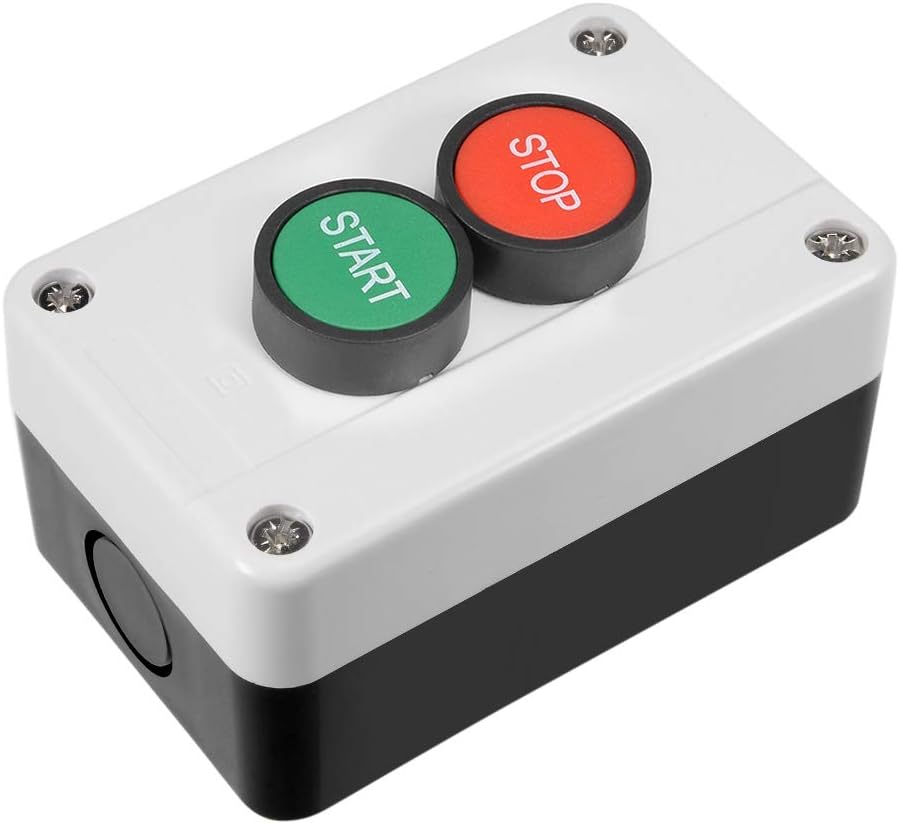

Push Button Switch Station Momentary NC Red, NO Green, 380V 10A, Start/Stop
Key Features
- Operation Type Momentary; Terminals Quantity 4; Ui 380V; Ith 10A
- Screw Hole Dia 4mm / 0.16"; Button Diameter 25mm / 0.98"
- Total Size (Approx.) 104 x 68 x 61mm / 4.09" x 2.68" x 2.4" (L*W*H);Package Content 1 x Push Button Switch Station
- Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
- The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.
Product Description
Specification:Material: PCAction Type: MomentaryContact Type:Red Push Button: 1NCGreen Push Button: 1 NOIth: 10A; Ui: 380VScrew Hole Dia: 4mm / 0.16inchButton Diameter: 25mm / 0.98inchHole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13inch (L x W)Total Size (Approx.): 104 x 68 x 61m / 4.09-inch x 2.68-inch x 2.40inch (L*W*T)
Package Content
1 x Push Button Switch Station
Description
The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections.
Specifications
| Product Dimensions | 4.33 x 3.94 x 2.76 inches |
