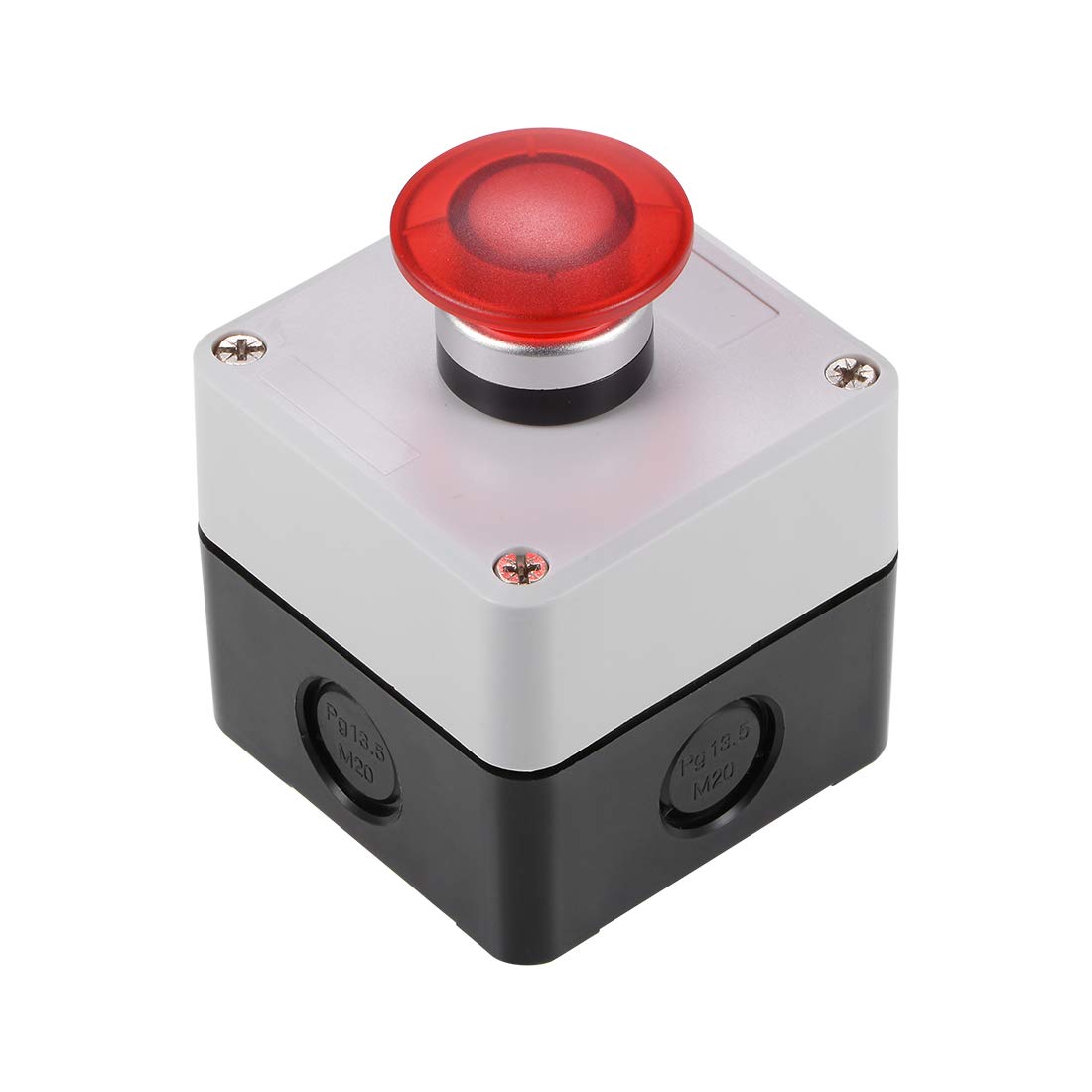

Push Button Switch Station Momentary 1NC 1NO Mushroom Red Switch, 600V 10A

Key Features

• Operation Type Momentary; Ui 600V; Ith 10A; Screw Hole Dia 4mm / 0.16"
• Hole Distance(center to center) 59 x 40mm/ 2.32" x 1.57" (L*W); Total Size (Approx.) 72 x 72 x 94m / 2.83 x 2.83 x 3.7" (L*W*T)
• Comes with quick connect terminals to allow for fast connections.
• The push button switch station have one switch, a 1NO 1NC momentary mushroom red push button switch, gray and black case.
• Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Product Description

Description

The push button switch station have one switch, a 1NO 1NC momentary mushroom red push button switch, gray and black case.Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections. Specification:Material: PCAction Type: MomentaryContact Type: 1NO 1NCButton Color: RedIth: 10A; Ui: 600VScrew Hole Dia: 4mm / 0.16"Hole Distance(center to center): 59 x 40mm/ 2.32" x 1.57" (L*W)Total Size (Approx.): 72 x 72 x 94m / 2.83 x 2.83 x 3.7" (L*W*T)

Package Content

1 x Push Button Switch Station
