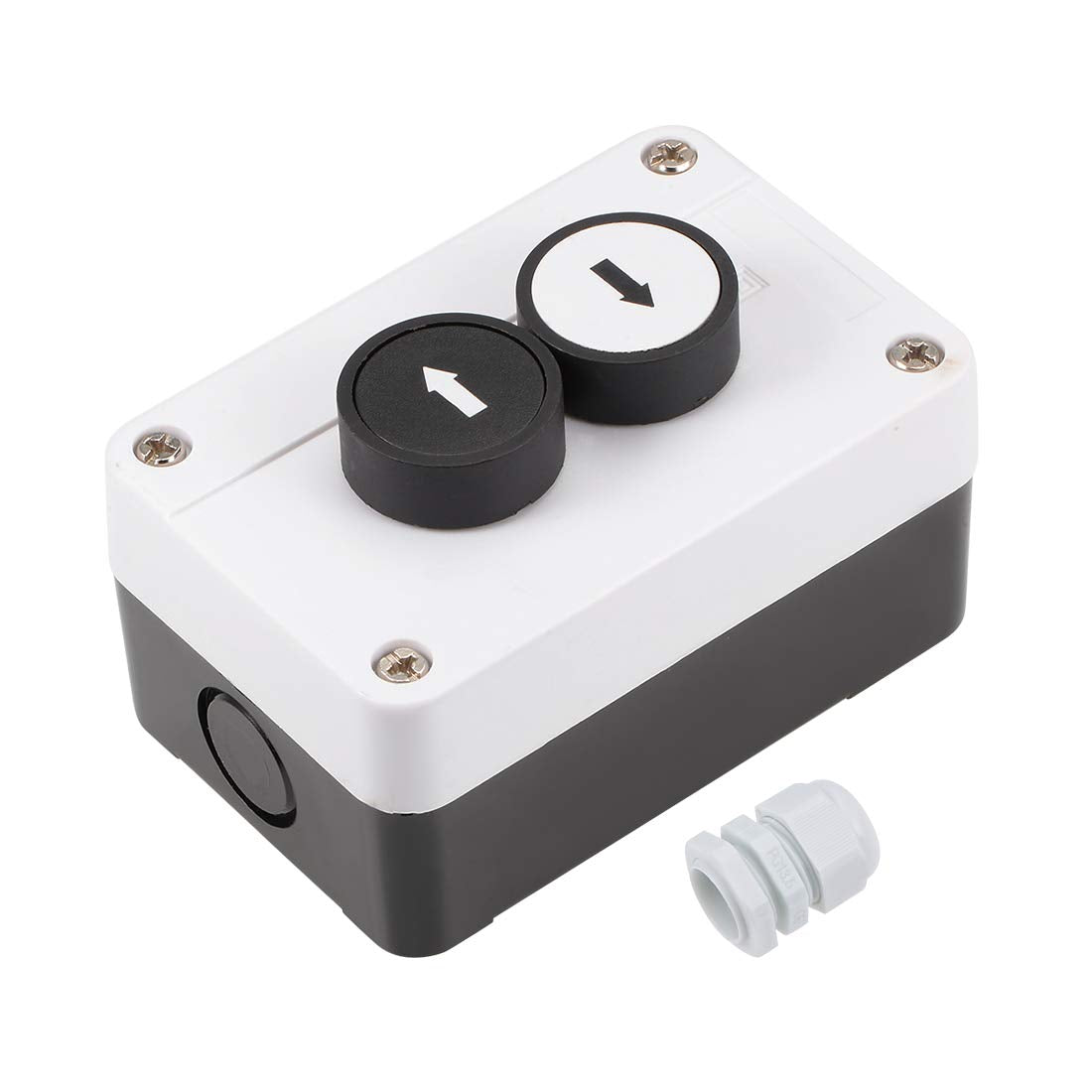

Push Button Switch Station Box Momentary NO White, NO Black, 600V 10A

Key Features

• Operation Type Momentary; Terminals Quantity 4; Ui 600V; Ith 10A
• Hole Distance(Center to Center) 68 x 54mm/ 2.68 x 2.13" (L*W); Total Size (Approx.) 104 x 68 x 60.5mm / 4.09" x 2.68" x 2.38" (L*W*H)
• Comes with quick connect terminals to allow for fast connections.
• The push button switch station consists of two switches, one is a 1 NO momentary White push button switch, one is a 1 NO momentary Black switch.
• Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Product Description

Description

The push button switch station consists of two switches, one is a 1 NO momentary White push button switch, one is a 1 NO momentary Black push button switch.Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections. Specification:Material: PCAction Type: MomentaryContact Type:White Push Button: 1 NOBlack Push Button: 1 NOIth: 10A; Ui: 600VScrew Hole Dia: 4mm / 0.16"Button Diameter: 25mm / 0.98"Hole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13" (L*W)Total Size (Approx.): 105 x 68 x 61mm / 4.13" x 2.68" x 2.4" (L*W*T)

Package Content

1 x Push Button Switch Station, 1 x PG13.5 Cable Gland
