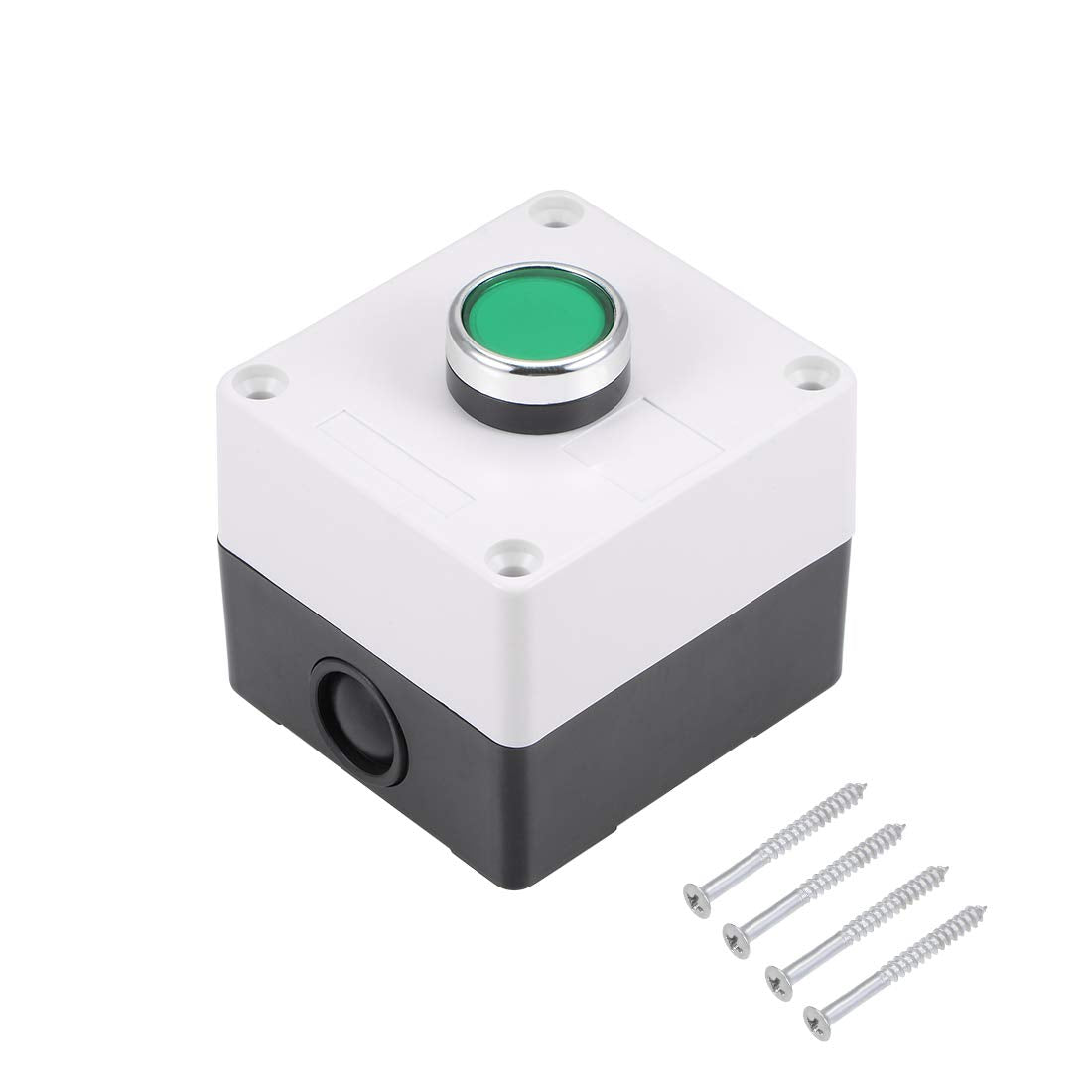

Push Button Switch Station Box Momentary 1NO 1NC Green 415V 10A 1pcs

Key Features

• Operation Type Momentary; Terminals Quantity 4; Ui 415V; Ith 10A
• Hole Distance(Center to Center) 54mm / 2.13"; Total Size (Approx.) 77 x 71 x 77mm / 3.03" x 2.8" x 3.03" (L*W*T)
• Comes with quick connect terminals to allow for fast connections.
• The push button switch station have one switch, 1NO 1NC momentary green push button switch.
• Can be widely used to control the electromagnetic, contactor, relay and other automatic control electric circuits.

Product Description

Description

The push button switch station have one switch, a 1NO 1NC momentary green push button switch.Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections. Specification:Material: PCAction Type: MomentaryContact Type: 1NO 1NCIth: 10A; Ui: 415VScrew Hole Dia: 4mm / 0.16"Button Diameter: 29mm / 1.14"Button Hole Size: 22mm/ 0.86"Outlet Hole Diameter: 20mm/ 0.79"Button Mounting Hole Diameter: 22mm / 0.87"Hole Distance(Center to Center) : 54mm / 2.13"Total Size (Approx.): 77 x 71 x 77mm / 3.03" x 2.8" x 3.03" (L*W*T)

Package Content

1 x Push Button Switch Station
