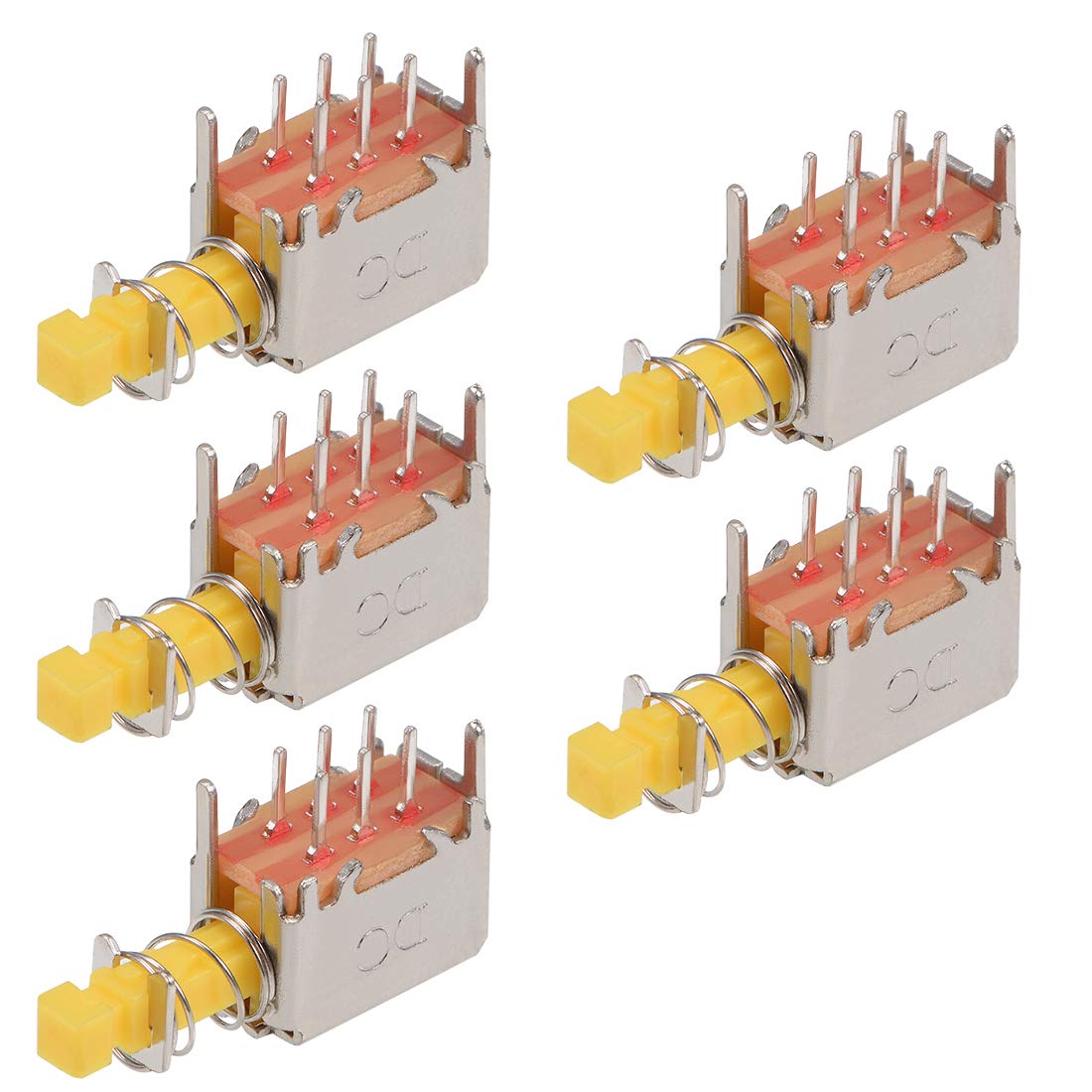

Push Button Switch DPDT 6 Pin 1 Position Self-Locking Yellow 5pcs

Key Features

• [Standard] - DPDT 6 Pins 2.5mm Pitch 1 Position
• [Latching Switch] - Self locking straight through hole miniature switch
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 5pcs x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: LatchingContact Configuration: DPDTTerminal Type: Straight Through HolePin Quantity: 6Each Pin Pitch: 2.5mmPosition Quantity: 1Mounting Pillar Distance: 11.7mm / 0.46-inchCap Mounting Part: 4 x 2.8mm / 0.16-inch x 0.11-inch(L*W)Overall Size: 22 x 6.7 x 12mm / 0.87-inch x 0.26-inch x 0.47-inch(L*W*H) Package Contents:5pcs x Push Button Switch

Description

Latching contact, 6 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
