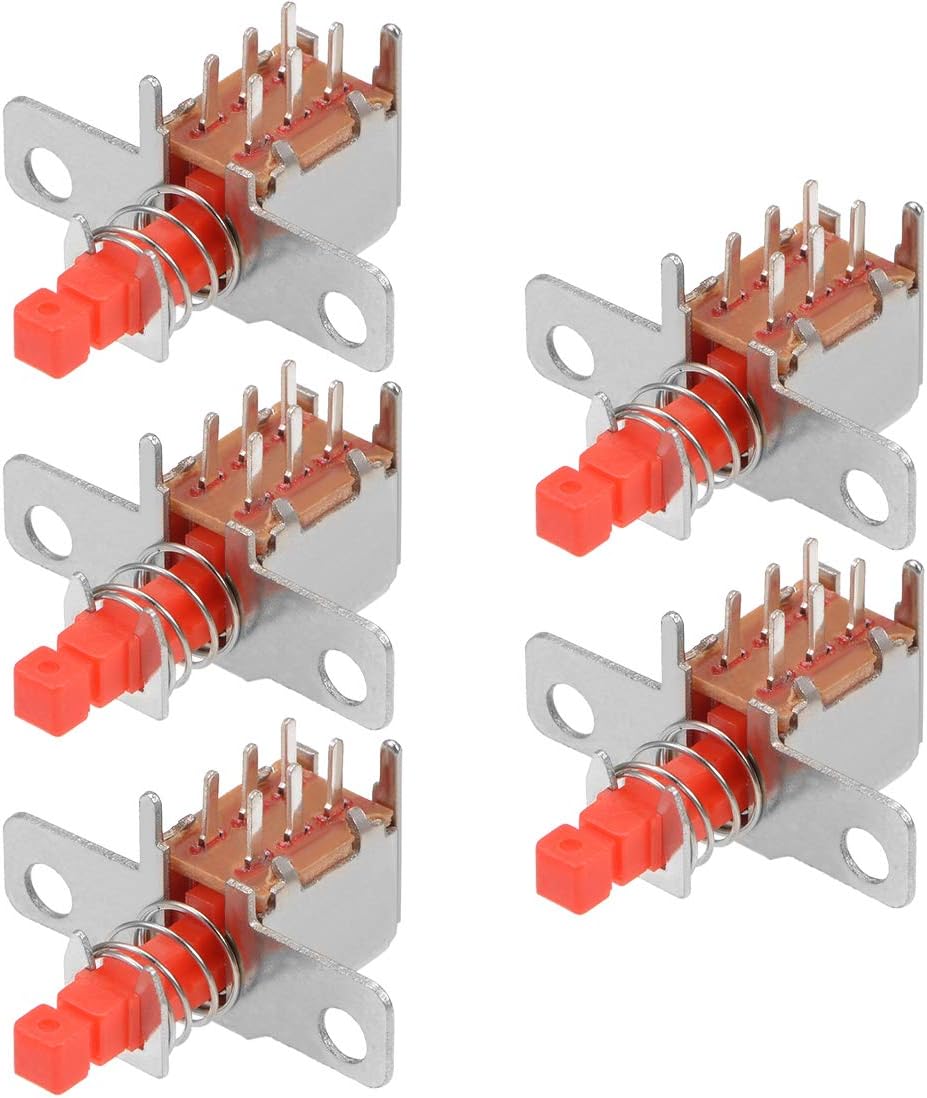

Push Button Switch, DPDT 6 Pin 1 Position Self-Locking Red 5pcs

Key Features

• [Standard] - DPDT 6 Pins 3mm Pitch 1 Position
• [Latching Switch] - Self locking straight through hole miniature switch
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 5pcs x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: LatchingContact Configuration: DPDTTerminal Type: Straight Through HolePin Quantity: 6Each Pin Pitch: 3mmPosition Quantity: 1Mounting Pillar Distance: 12mm / 0.47-inchMounting Hole Distance: 19mm / 0.75-inchCap Mounting Part: 6 x 3.3mm / 0.24-inch x 0.13-inch(L*W)Overall Size: 25 x 26 x 14mm / 0.98-inch x 1.02-inch x 0.55-inch(L*W*H) Package Contents:5pcs x Push Button Switch

Description

Latching contact, 6 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
