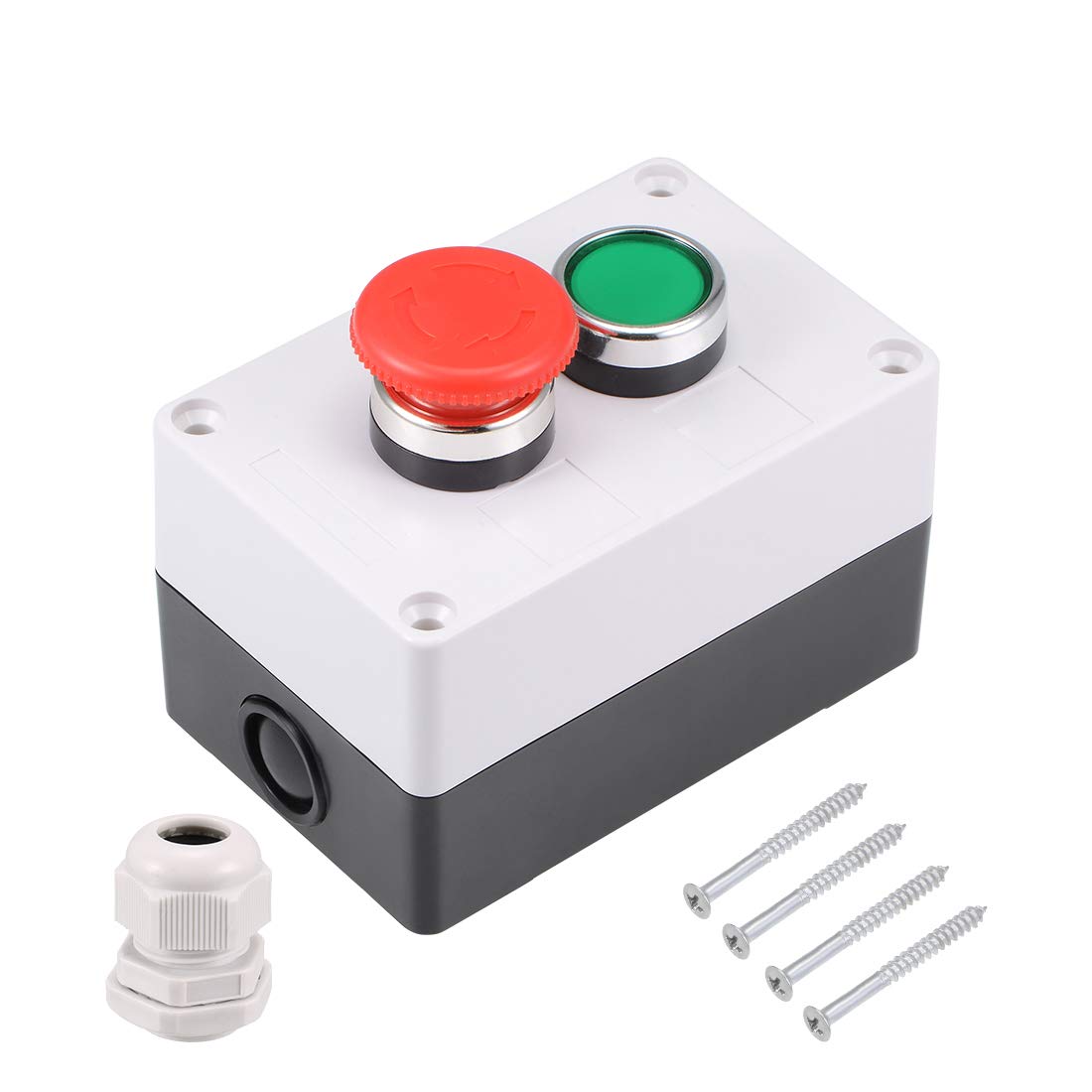

Push Button Switch Box Momentary Green Switches and Emergency Stop 415V 10A

Key Features

• Green Button Momentary; Rotary Switch Self-Locking(Rotate button to reset); Contact Type NO NC; Ith 10A; Ui 415V
• Hole Distance(center to center) 80 x 54mm/ 3.15" x 2.13" (L*W); Total Size (Approx.) 110 x 72 x 90mm / 4.33 x 2.83 x 3.54" (L*W*T)
• Comes with quick-connect terminals to allow for fast connections.Tighten the red button instantaneous needle before use.
• The push button switch station consists of two switches, one is a momentary green push button switch and a emergency stop switch.
• Can be widely used to control electromagnetic, relay and other automatic control electric circuits.

Product Description

Description

The push button switch station consists of two switches, one is a momentary green push button switch and a emergency stop switch.Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections. Tighten the red button instantaneous needle before use.Specification:Material: PCAction Type:Green Button: MomentaryEmergency Stop Switch: Self-LockingContact Type: NO NCButton Color: Red, GreenIth: 10A; Ui: 415VScrew Hole Dia: 4mm / 0.16"Hole Distance(center to center): 80 x 54mm/ 3.15" x 2.13" (L*W)Total Size (Approx.): 110 x 72 x 90mm / 4.33 x 2.83 x 3.54" (L*W*T)

Package Content

1 x Push Button Switch Station, 1 x PG13.5 Cable Gland
