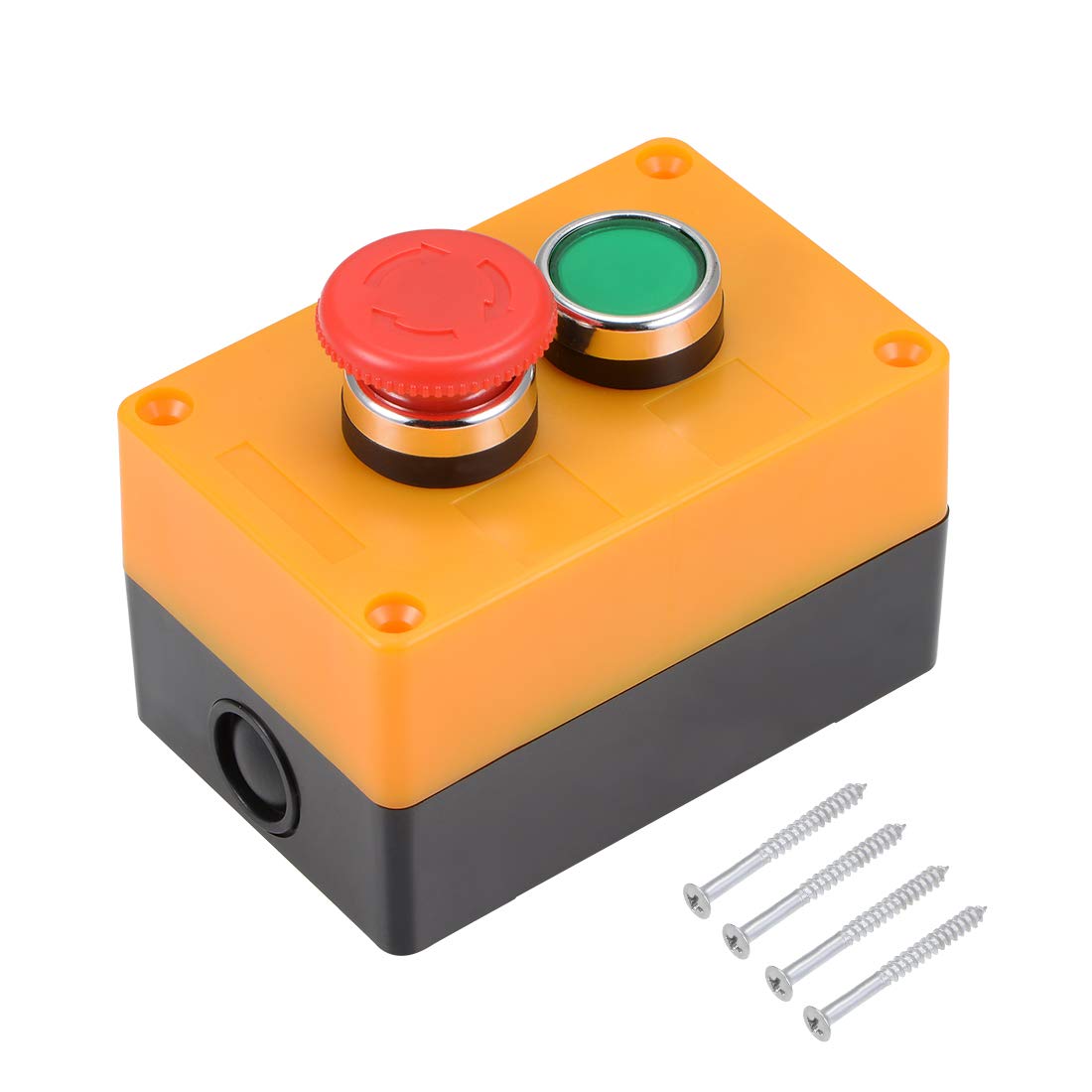

Push Button Switch Box Momentary Green Switches and Emergency Stop
Key Features
- Red Green Button Momentary; Rotary Switch Self-Locking; Contact Type NO NC; Ith 10A; Ui 415V
- Hole Distance(center to center) 80 x 54mm/ 3.15" x 2.13" (L*W); Total Size (Approx.) 110 x 72 x 93mm / 4.33 x 2.83 x 3.66" (L*W*T)
- Comes with quick connect terminals to allow for fast connections.
- The push button switch station consists of two switches, one is a momentary red push button switch and a emergency stop switch.
- Can be widely used to control electromagnetic, relay and other automatic control electric circuits.
Product Description
Description
The push button switch station consists of two switches, one is a momentary red push button switch and a emergency stop switch.Can be widely used to control electromagnetic, relay and other automatic control electric circuits.Comes with quick connect terminals to allow for fast connections. Specification:Material: PCGreen Button: MomentaryEmergency Stop Switch: Self-LockingContact Type: NO NCButton Color: Red, GreenIth: 10A; Ui: 415VScrew Hole Dia: 4mm / 0.16"Button Hole Size: 22mm/ 0.86"Outlet Hole Diameter: 20mm/ 0.79"Hole Distance(center to center): 80 x 54mm/ 3.15" x 2.13" (L*W)Total Size (Approx.): 110 x 72 x 93mm / 4.33 x 2.83 x 3.66" (L*W*T)
Package Content
1 x Push Button Switch Station
