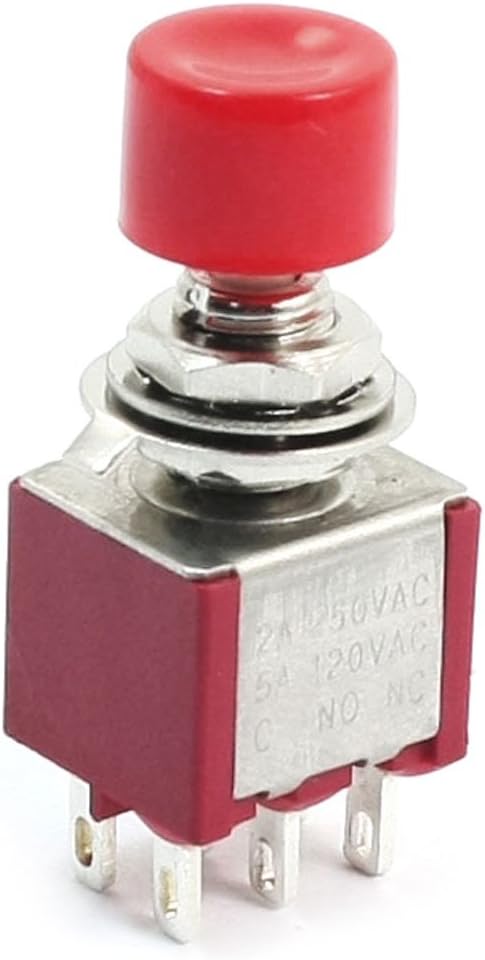

PS821M1 Momentary Red Push Button Switch DPDT AC250V 2A 120V 5A

Brand: LinkMejor
★★★★☆ 323 ratings | 3 answered questions
$7.99
✓ In Stock
✓ Secure transaction
🚚 Free delivery available
🔄 30-day returns
📦 Ships from linkmejor.com

Key Features

  • Product Name Push ButtonToggle Switch;Model PS8-21M1;Type DPDT (Momentary)
  • Contact Type 2NO, 2NC, 2COM;Voltage, Current AC 250V 2AAC 120V 5A
  • TerminalNumber 6Pins;Panel CutoutDiameter 6mm / 0.24"
  • Body Size 13 x 12x 10mm / 0.51" x 0.47" x 0.4" (L*W*H);Total Height 32mm/ 1.3"
  • Weight 7g;Package Content 1 x Push Button Switch

Product Description

6pin terminals, DPDT,2NO,2NC,2COM, easy installation, momentary action, push button switch, mini toggle switch.Widely used in electronic communications, digital, home appliances, anti-theft system, instruments and meters, computer peripheral products and other electronic equipment.

Specifications

Item Weight 0.352 ounces
Product Dimensions 4.33 x 3.94 x 0.79 inches
