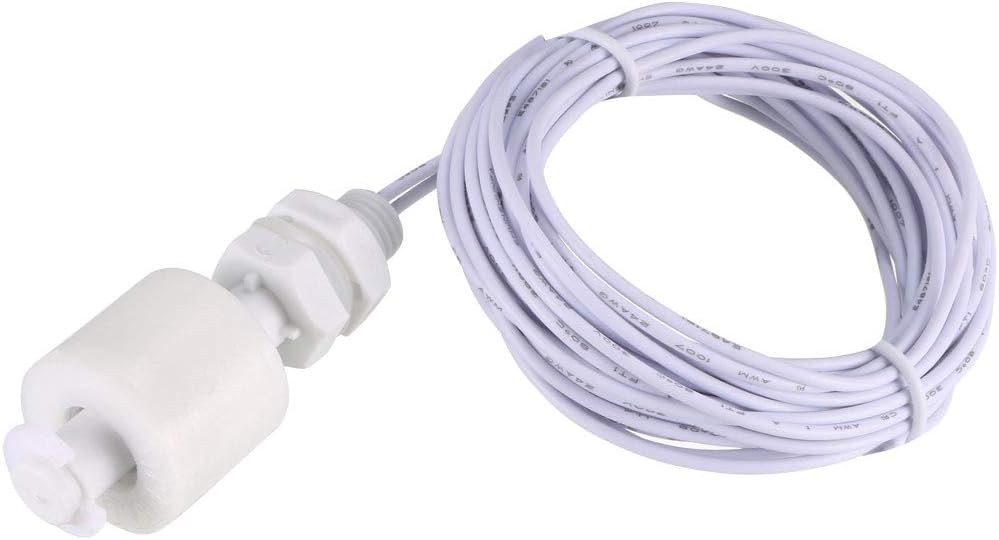

PP Float Switch 47.5mm/1.87inch Fish Tank Vertical Liquid Water Level Sensor Plastic White with 2M Long Cable

Key Features

• Max Contact Rating 10W Max Switching Voltage 110V DC Max Switching Current 0.5A Max Breakdown Voltage 220V DC Max Carry Current 1.0A Max Contact Resistance 100mohm
• Float Ball Material PP Float Body Material PP Float Ball Size(Approx) 19x16xmm/0.75x0.63xinch(Dia*H)
• A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
• The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
• Kindly Note because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

Product Description

Specifications

Product Name: Float Switch Max Contact: Rating 10WMax Switching Voltage: 110V DCMax Switching Current: 0.5AMax Breakdown Voltage: 220V DCMax Carry Current: 1.0AMax Contact Resistance: 100mohmTemperature Rating: -10 ~ +60 C / 85 CFloat Ball Material: PPFloat Body Material: PPFloat Ball Size(Approx): 19x16xmm/0.75x0.63xinch(Dia*H)Thread Dia(Approx): 8mm/0.31inchBody Total Length: 47.5mm/1.87inch Cable Length: 2M/78.74inchNet Weight: 22g Package Content 1 x Float Switch
