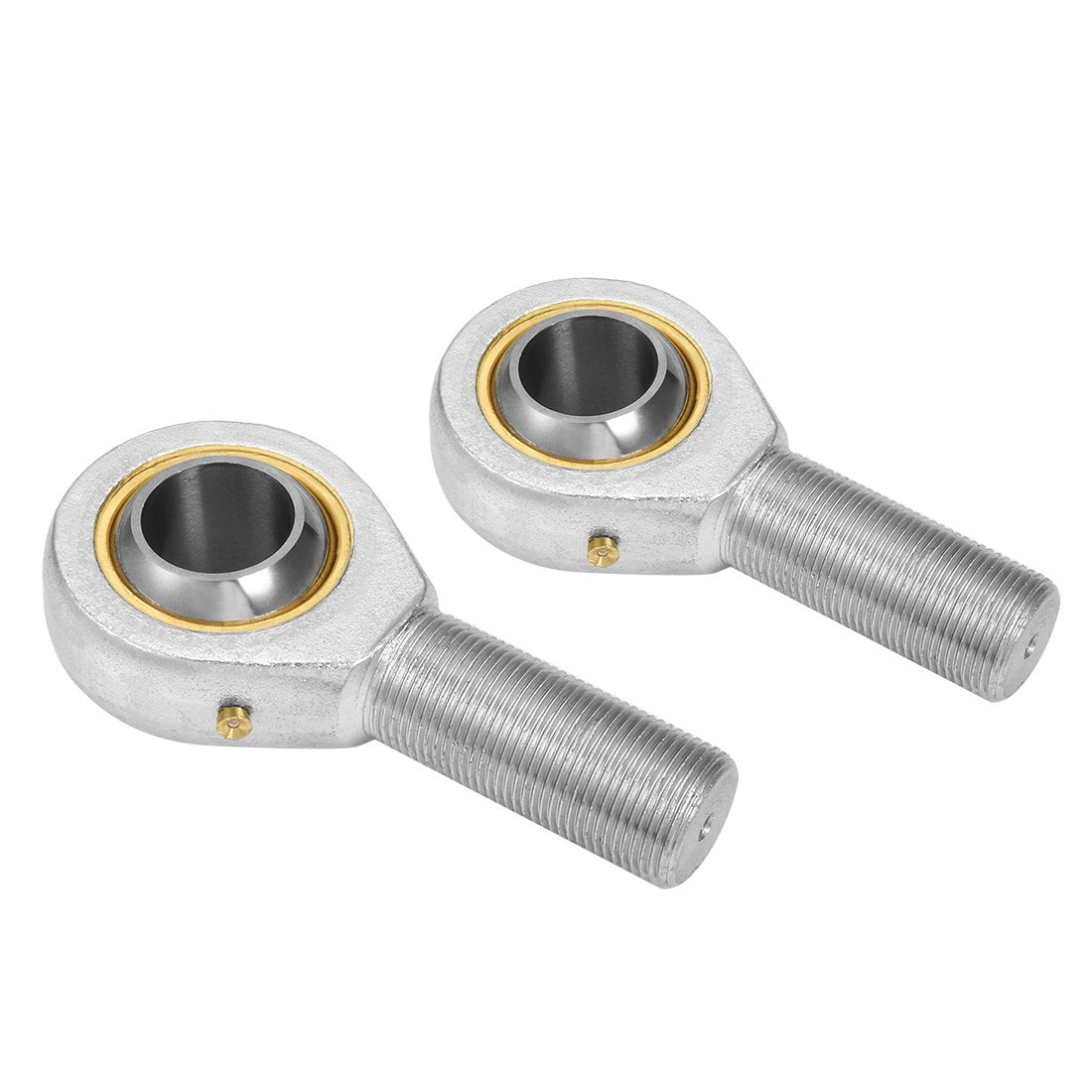

POS10, Rod End Bearing, 10mm Inside Dia Economy Self Lubricating Male Right Hand 2pcs

Key Features

• THREAD DIAMETER M10.
• FEATURES 10mm Bore Self Lubricating Male Right Hand.
• INSTAL Large load capability,easy mounting and dismounting and mechanism simplification.
• STEEL BALL Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
• APPLICATION Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.

Product Description

1. Machined carbon steel housing and white zinc female shank with right hand threads2. Spherical rod end bearing for transferring motion between widely separated points.3. It has characteristics of large load capability,easy mounting and dismounting and mechanism simplification.4. Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.5.Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.Specification:Product Name: Rod End Bearing

Package Content

2pcs x Rod End BearingMaterial: Carbon Steel,White Zinc PlatedColor: Silver ToneOutside Diameter: (Head)26mm / 1-inchInside Diameter: (Bore)10mm / 0.4-inchWeight: 112gModel: PHS10Thread Diameter: M10 (RH)Total Length: 62mm / 2.44-inchUlt. Static Radial Load: 14.5KNMaximum Angular Misalignment: 13 DegreeCenter Of Ball To Bottom Of Shank: 48mm / 1.9-inchLength Through Bore: 14mm / 0.55-inch

Specifications
