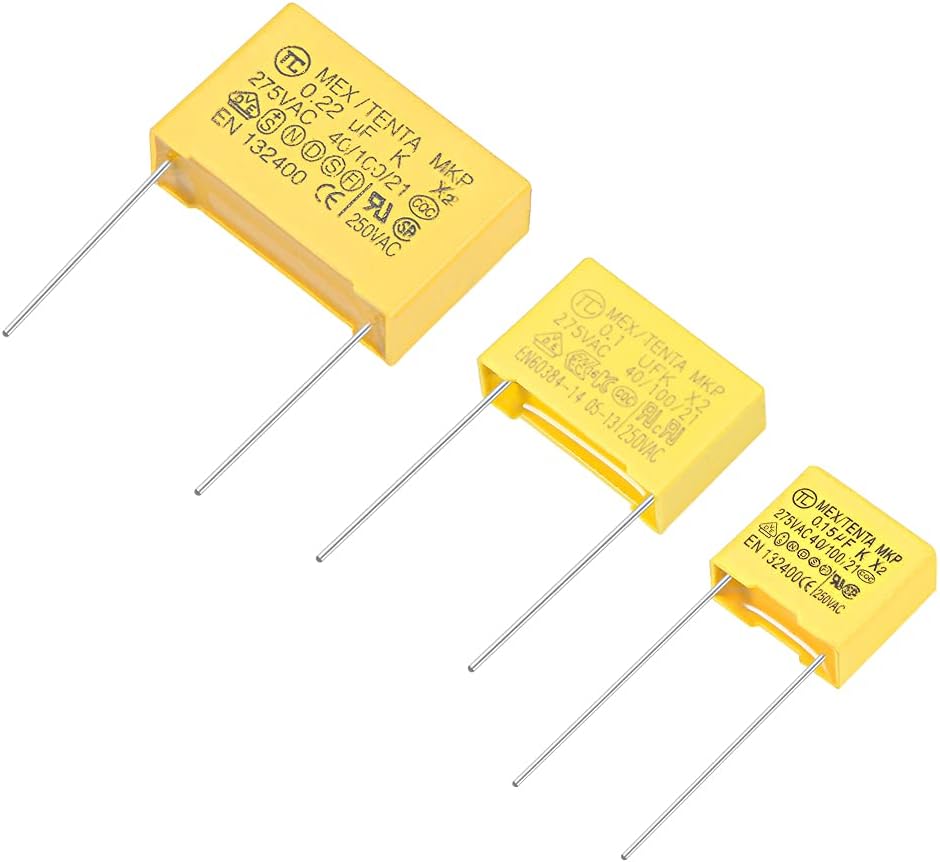

Polypropylene Safety Capacitors Assortment Kit DIP 275VAC X2 MKP 3 Value - 0.1uF 0.15uF 0.22uF 30 Pcs

Key Features

• Capacitance 0.1uF, 0.15uF, 0.22uF; Tolerance K(±10%); Withstand Voltage 275V AC.
• Performance Anti-electromagnetic interference, can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.
• Durable Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.
• Application Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.
• Package Content 30 Pcs (Each Model 10pcs) x Polypropylene Capacitors.

Product Description

Description

1. Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.2. It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements.3. Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance. Specification: Capacitance: 0.1uF, 0.15uF, 0.22uFWithstand Voltage: 275V ACMaterial: Polypropylene, MetalColor: YellowShape: RectangleTolerance: K(±10%)Temperature Characteristic: 40/100/21Lead Type: Radial DirectionLead Shape: SPin Pitch: 15mm / 0.59inch; 10mm / 0.39inchLead Size:X2/275V104P15: 20 x 0.7mm / 0.79 x 0.03inch(D*L)X2/275V154P10: 24 x 0.6mm / 0.94 x 0.02inch(D*L)X2/275V224P15: 15 x 0.7mm / 0.59 x 0.03inch(D*L)

Package Content

30 Pcs x Polypropylene Capacitors 10 x 0.1uF Capacitors10 x 0.15uF Capacitors10 x 0.22uF Capacitors
