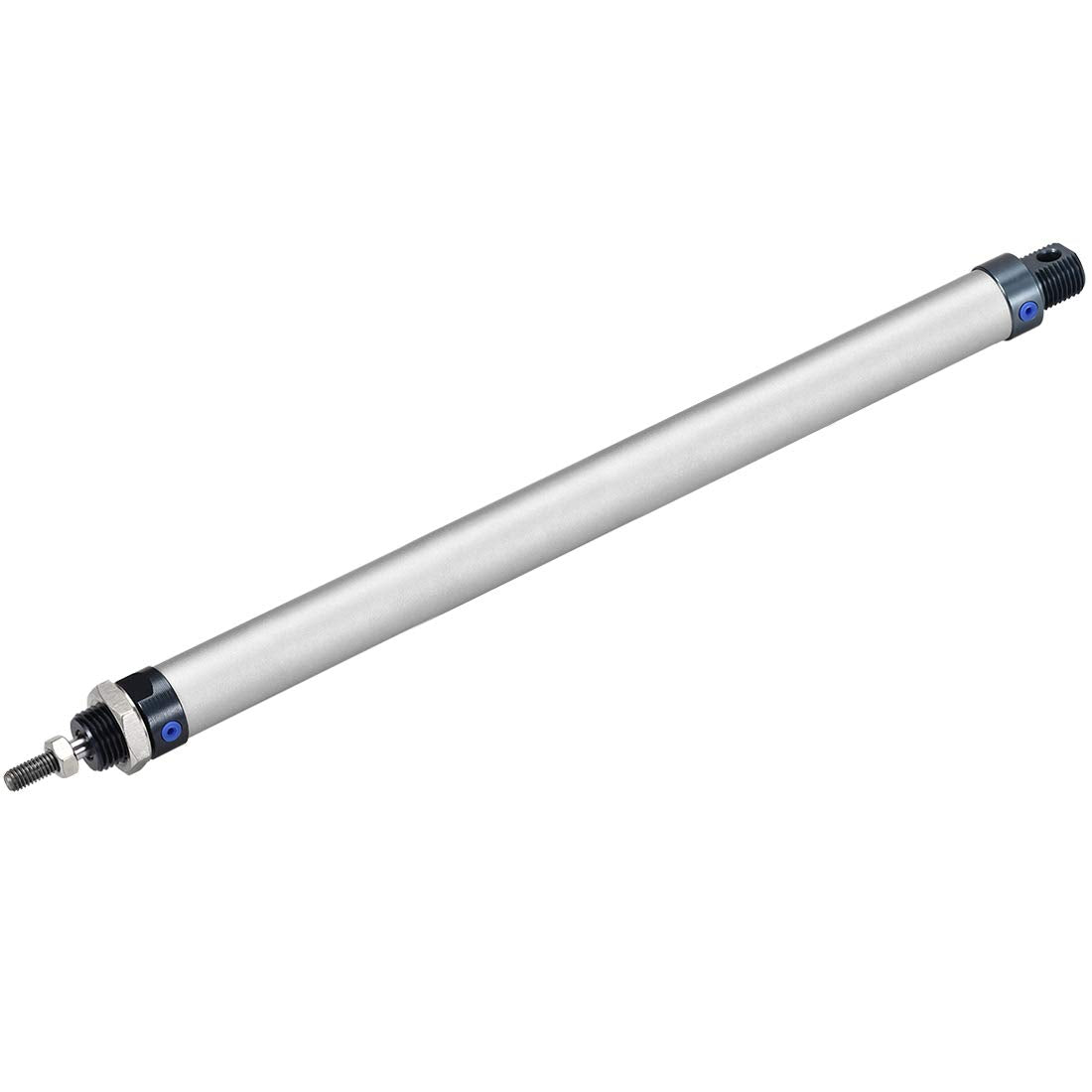

Pneumatic Air Cylinder MAL16 x 400,16mm Bore 400mm Stoke M6,Single Rod Double Action

Key Features

• 16mm bore and 400mm stroke, M6 Piston Rod Thread, M5 Rod female thread Size.
• Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven
• Pneumatic Cylinder is made of aluminum alloy and metal, it is resistant to impact and deformation and the surface is hard oxidized, rust-proof, and corrosion-resistant. thickened cylinder body, and sealing rod.
• Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Convenient installation, stable operation, good sealing performance, and wide application range.
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

Specifications

Material: Aluminum alloyBore: 16mm / 0.63"Stoke : 400mm / 15.75"Piston Rod Thread: M6Rod female thread Size: M5Rod End Thread Hole Size: 6mm / 0.24"Rod Two End Thread Size: M5Rod End Thread Size : 16mm x 16mm /0.63" x 0.63" (D x H)Total Size : 510mm x 21mm / 20.08" x 0.83" (L x D)Operating Pressure: 0.15- 1MPaOperating temperature：-20 - 70 Degree Celsius

Package Content

1pcs x Pneumatic Air Cylinder

Description

1. Pneumatic Cylinder is made of aluminum alloy and metal, it is resistant to impact and deformation and the surface is hard oxidized, rust-proof, and corrosion-resistant. thickened cylinder body, and sealing rod.2. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions3. Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.4. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Convenient installation, stable operation, good sealing performance, and wide application range.5. Pneumatic cylinders can be double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning on one or both ends of their tub.6. Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machines, hydraulic system maintenance, etc.
