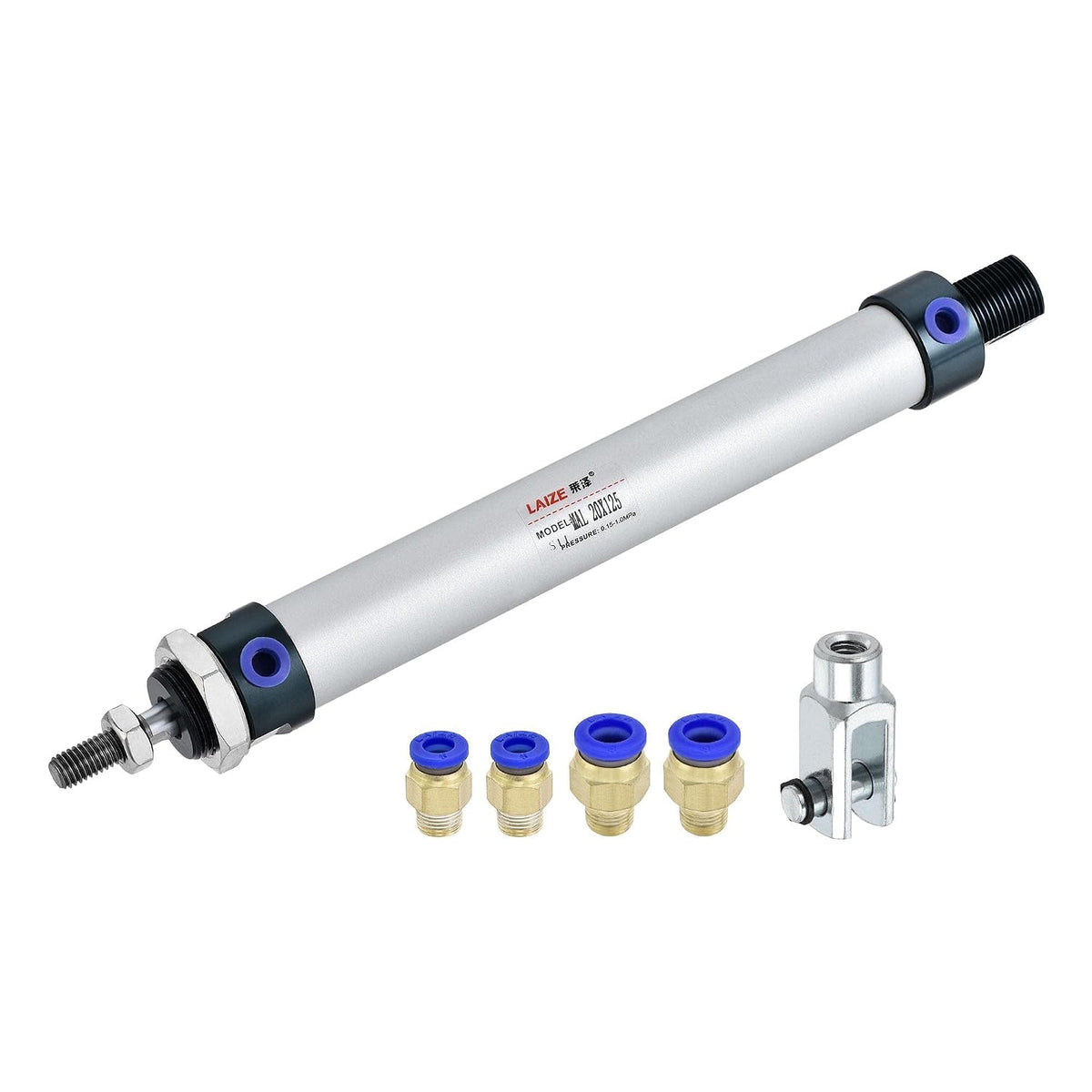

Pneumatic Air Cylinder 20mm Bore 125mm Stroke with Y Connector and Quick Fittings, MAL 20x125, for Automatic Equipment

Key Features

• Model MAL 20x125; Bore 20mm / 0.79"; Stroke 125mm / 4.92".
• Single Rod, Double Acting, Includes Y Connector and 4pcs Quick Fittings.
• Made of Aluminum alloy, corrosion and rust resistance, more durable, suitable for long-term use.
• Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
• Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.

Product Description

Features

Made of Aluminum alloy, corrosion and rust resistance, more durable, suitable for long-term use.Improved sealing structure, good sealing, lubrication and guiding performance.Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.

Specifications

Model: MAL 20x125Action Type: Double ActingRod Type: Single RodMaterial: Aluminum AlloyBore: 20mm / 0.79"Stroke: 125mm / 4.92"Port Size: G1/8Piston Rod Thread: M8x1.25mmRod Two End Thread Size : M22x1.5mmTotal Length: 260mm / 10.24"Working Pressure: 0.15~1.0 MPa / 22~145 Psi

Package Content

1 x Air Cylinder1 x Y Connector2Pcs x G1/8 to 6mm Quick Fitting2Pcs x G1/8 to 8mm Quick Fitting
