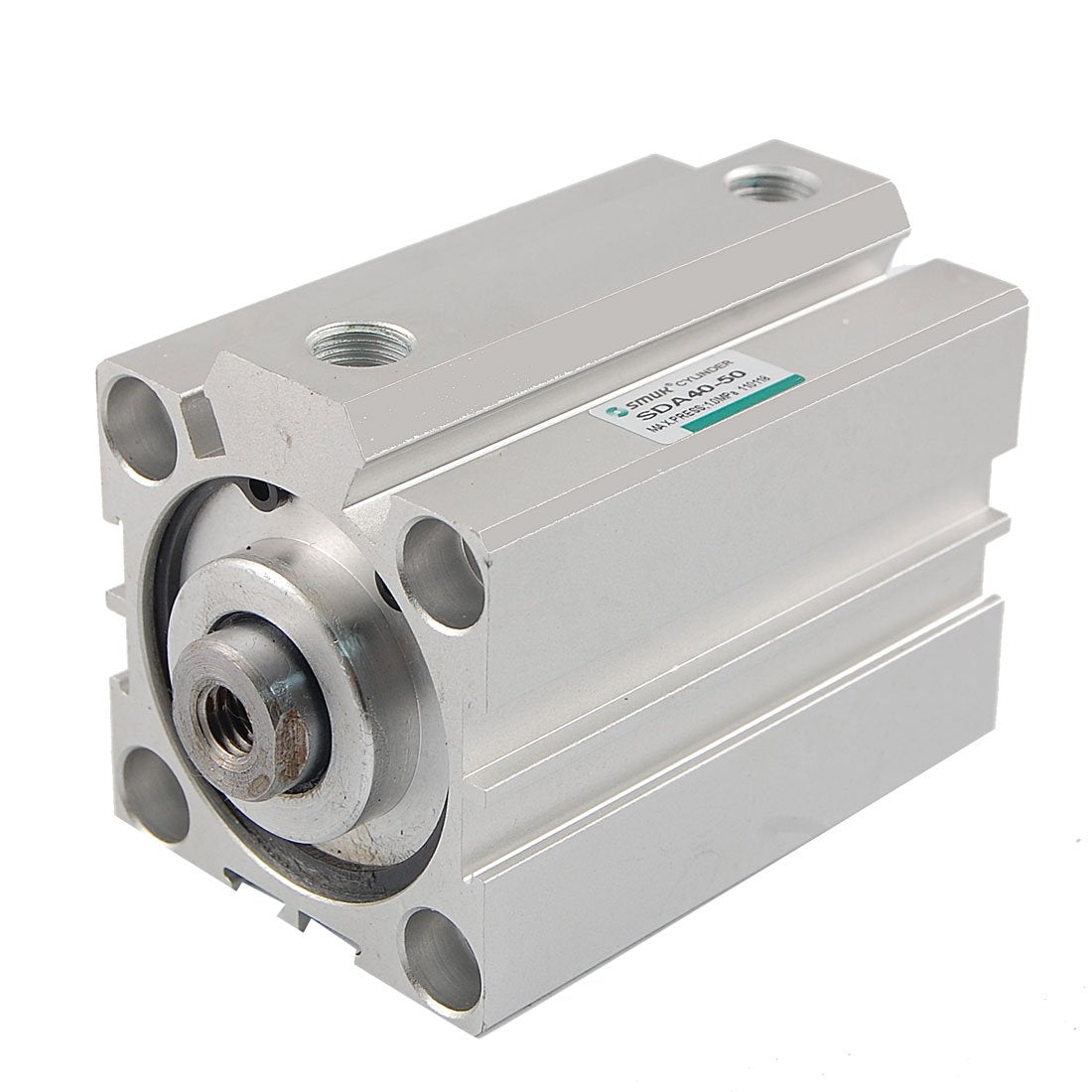

Pneumatic 40mmx50mm Double Action Thin Air Cylinder SDA 40-50

Key Features

• Product Name Air Cylinder;Model SDA 40-50;Action Type Double Action
• Bore 40mm/1.6'';Stroke 50mm/2'';Max Presssure 1.0Mpa
• Port Dia.(Approx) 8mm/0.31'';Center Threaded Hole Dia(Approx) 6.5mm/0.26'';Piston Rod External Diameter 16mm/0.6''
• Mounting Thread Diameter 6.5mm/0.26'';Overall Size(Approx) 58 x 52 x 85mm/2.3'' x 2'' x 3.3'' (L*W*H);Material Aluminum Alloy
• Weight 410g;Package Content 1 x Air Cylinder

Product Description

40mm bore and 50mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
