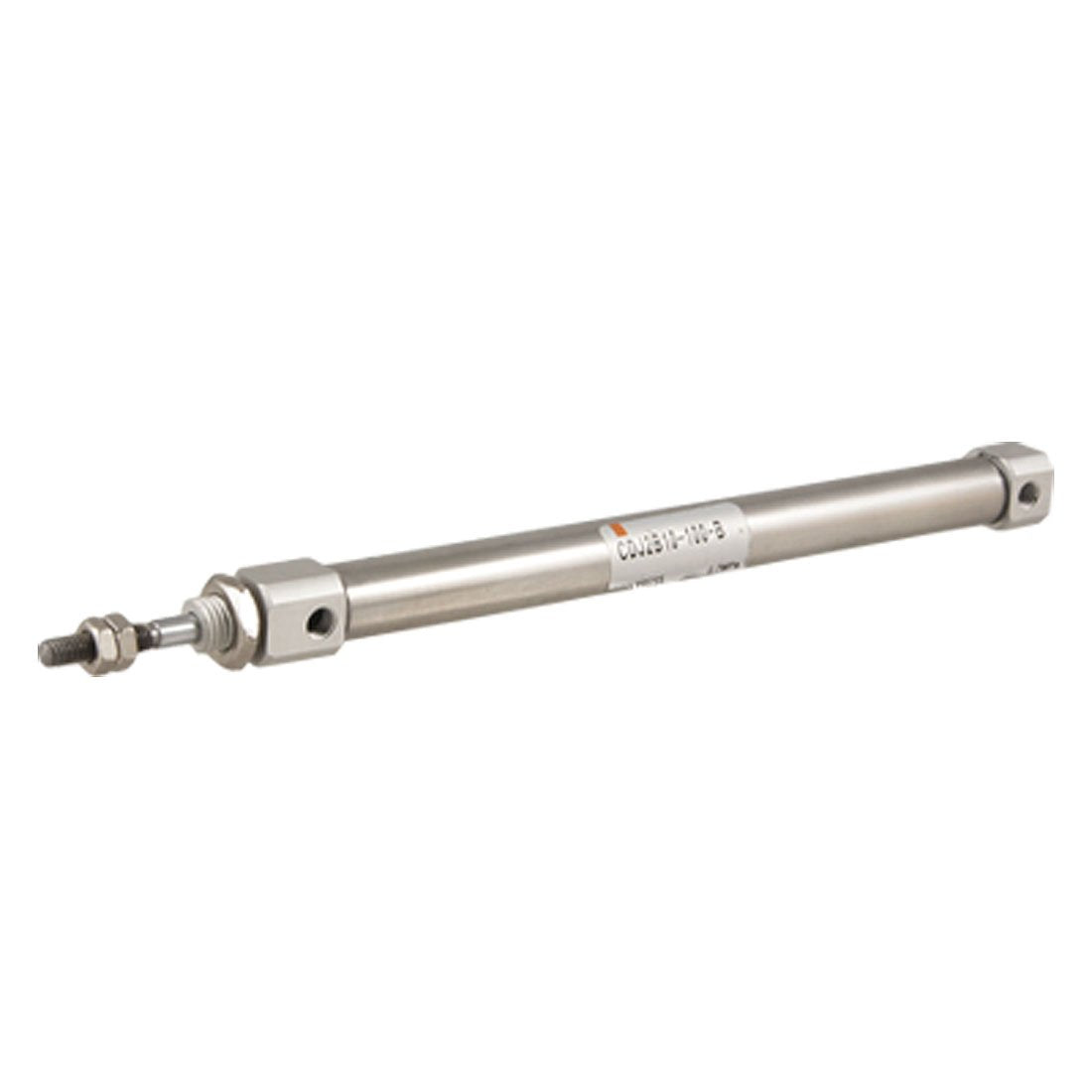

Pneumatic 10mm Bore 100mm Stroke Double Action Aluminum Alloy Air Cylinder

Key Features

• Product Name Air Cylinder;Model CDJ2B10-100-B;Action Double Action
• Rod Type Single Rod;Bore 10mm;Stroke 100mm
• Rod Diameter 4mm;Rod Thread Diameter 3.8mm;Thread Hole Diameter 4mm
• Max Press 0.7Mpa;Overall Size(Approx) 173 x 12 x 12mm/ 6.8" x 0.5" x 0.5" (L*W*H);Material Aluminum Alloy
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

Feature aluminum alloy body, single rod double action, long service life, easy to maintain and operate. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Even at lower pressures, air cylinders can still move very fast and deliver quite a lot push, so always be very careful around. The 4mm thread hole is for 5mm screws.
