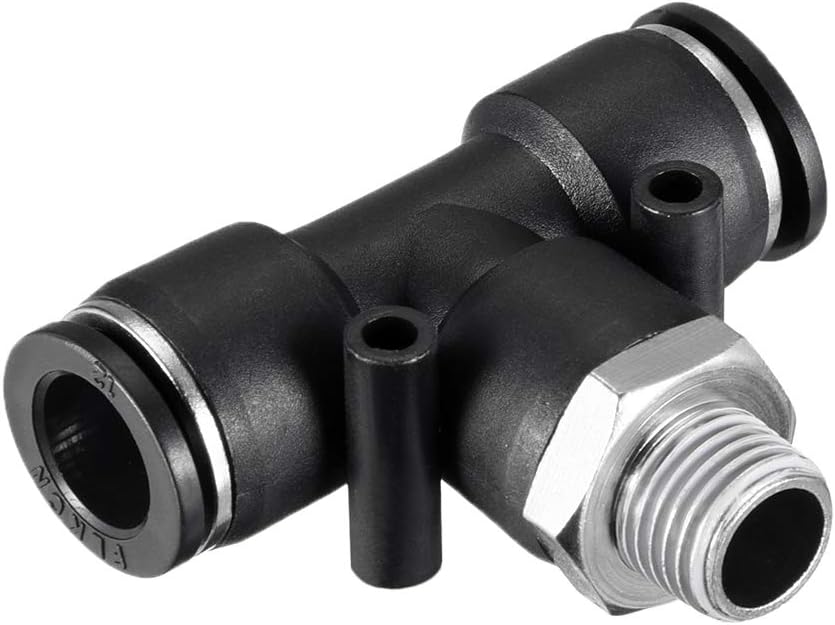

Plastic Tee Push To Connect Tube Fittings 12mm or 15/32" OD x G1/4 Male Thread Push Lock

Key Features

• Product Name Plastic Tee Connect Fitting; Two Tube and Thread Size 12mm Tube OD x 1/4" G Male Thread
• Operating Pressure 0-1MPa ; Operating temperature：0 - 60 Degree Celsius
• TUBE FITTINGS. Push-to-connect tube connection on one end and male G threads on the other end.A good release cap can withstand greater and stronger pressure without tripping.
• ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• MATERIAL. Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Description

Product

Features

Product Name : Connect FittingModel : PB12-02Color : BlackNet Weight : 38gMaterial : Plastic,CopperType: T Type Thread Tee ConnectorOperating Pressure : 0-1MPaOperating temperature：0 - 60 Degree CelsiusThread Size : 1/4" G Two Tube Size (OD) : 15/32" / 12mmDimension : 55mm x 47mm x 20mm / 2.17-inch x 1.85-inch x 0.79-inch(L x W x H )

Package Content

1pcs x Fitting

Description

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.2.Push-to-connect tube connection on two end and male G threads on the other end.3.A good release cap can withstand greater and stronger pressure without tripping.4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.6.Two small tube in the side are use for fixed. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Specifications
