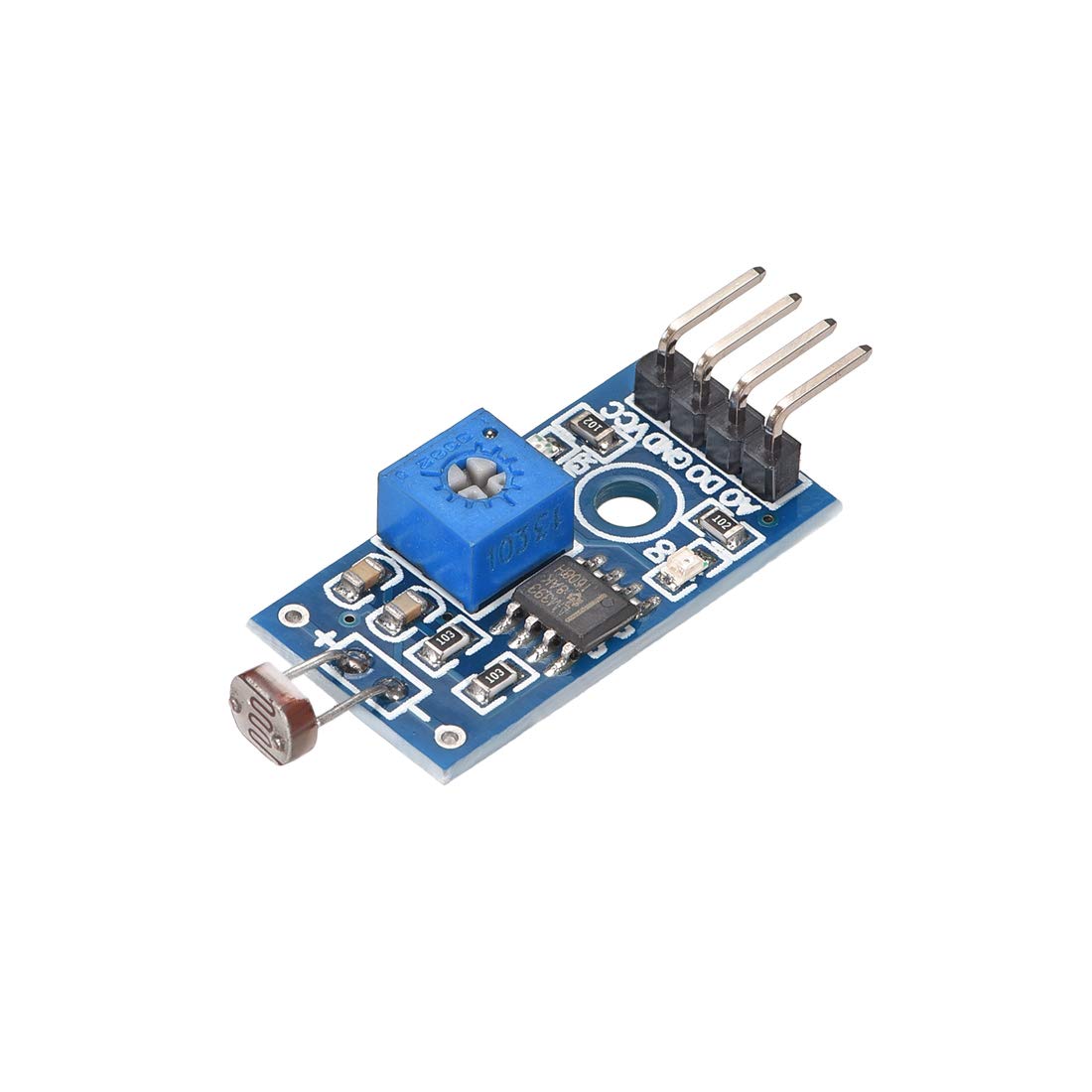

Photosensitive Sensor Module Digital Light Intensity Detection 4pins DC 3.3-5V for UNO

Key Features

• 1. Supply voltage DC 3.3-5V ; Output Digital signal 0&1
• 2.Generally used to detect surrounding environment of the brightness of the light.
• 3.With power indicator (red) and relay pull-in indicator (blue), and four M3 screw mounting holes for easy installation
• 4.When ambient light intensity does not reach the threshold value, the module DO port output high; when the ambient light intensity exceeds a set threshold, the D0 output low;
• 5.Digital outputs D0 can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the light intensity changes in the environment;

Product Description

Description

1.When ambient light intensity does not reach the value, the module DO port output high; when the ambient light intensity exceeds a set point, the D0 output low;2.The photoresistor module is most sensitive to the brightness of ambient light and is generally used to detect surrounding environment of the brightness of the light. 3. Digital outputs D0 can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the light intensity changes in the environment; Specification:Material: Photosensitive sensor module Output : Digital signal 0&1VCC input voltage: DC 3.3-5VPCB Size: 31 x 14mm (L*W) Hole Size: 3mm/ 0.12"

Package Content

1pcs x Photosensitive sensor module

Specifications
