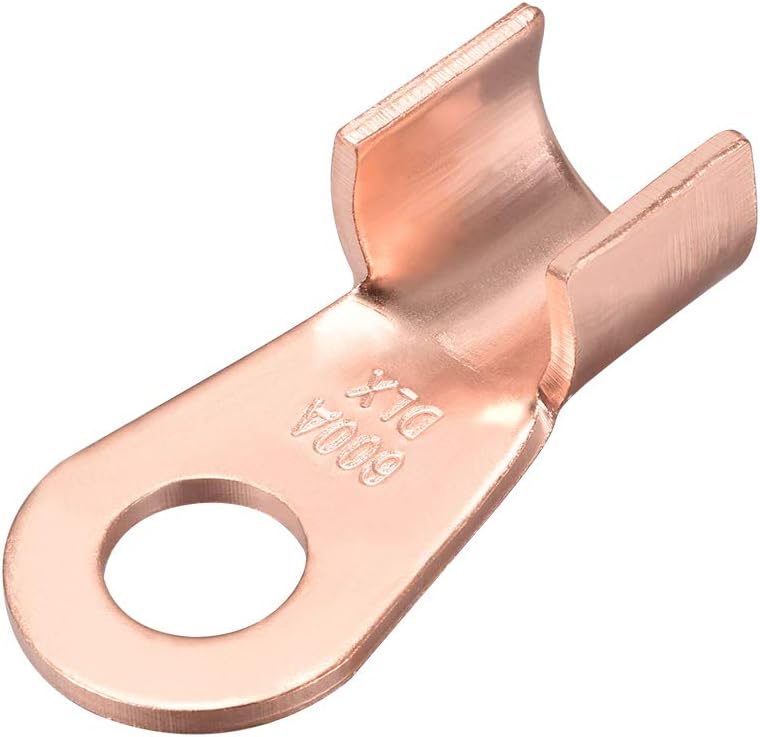

OT-600A Open-End Copper Crimp Terminal Lugs AWG 3/0-4/0 Battery Cable Connector

Key Features

• Rated Current 600A; Applicable Wire Gauge 70-150 mm2 / AWG 3/0-4/0
• Size 67mm*32mm*21.5mm; Ring Internal Diameter 16.2mm; Thickness 2.8mm
• Made of pure red copper, excellent conductivity
• The open slot type lug works well with any cable and its open design make it easier to crimp than the standard closed sleeve type
• Used widely in the machine, electric power, railway, shipbuilding, aviation, home appliance or other automatic equipment

Product Description

Description

Terminal connectors are used to connect tap conductor to power equipment (transformer, circuit breaker, disconnect switch. etc) or to wall bushing of substation. Used widely in the machine, electric power, railway, shipbuilding, aviation, home appliance or other automatic equipment.

Specifications

Model: OT-600AMaterial: Red CopperRated Current: 600AApplicable Wire Gauge: 70-150 mm2 / AWG 3/0-4/0Size: 67mm*32mm*21.5mmRing Internal Diameter: 16.2mmThickness: 2.8mm

Note

Please allow 1-2 mm deviation exists due to the different measuring way, Thank you!
