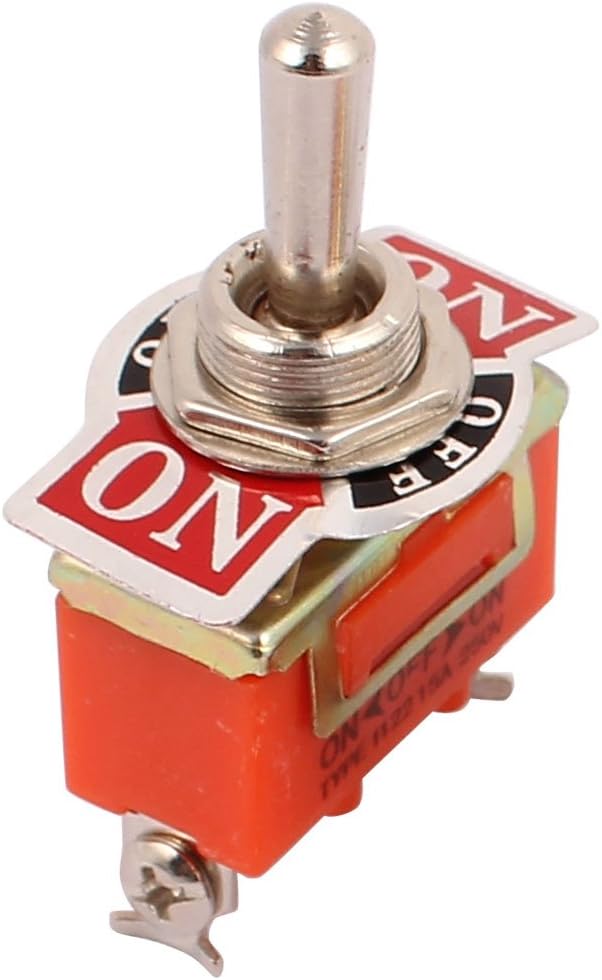

On/Off/On 3 Postion 3 Terminals SPDT Toggle Switch AC 250V 15A

Key Features

• Product Name Toggle Switch;Type SPDT (On/ Off/ On), Latching
• Position 3;Mounting Hole Diamter 12mm / 0.456"
• Main Body Size 30 x 15 x 18mm/ 1.2" x 0.59" x 0.7" (L*W*H);Overall Height 57mm / 2.2"
• Material Metal, Resin;Weight 25g
• Package Content 1 x Toggle Switch

Product Description

Please note

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W Max Power Rating for DC Lamp: DC 30V 3.5A Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
