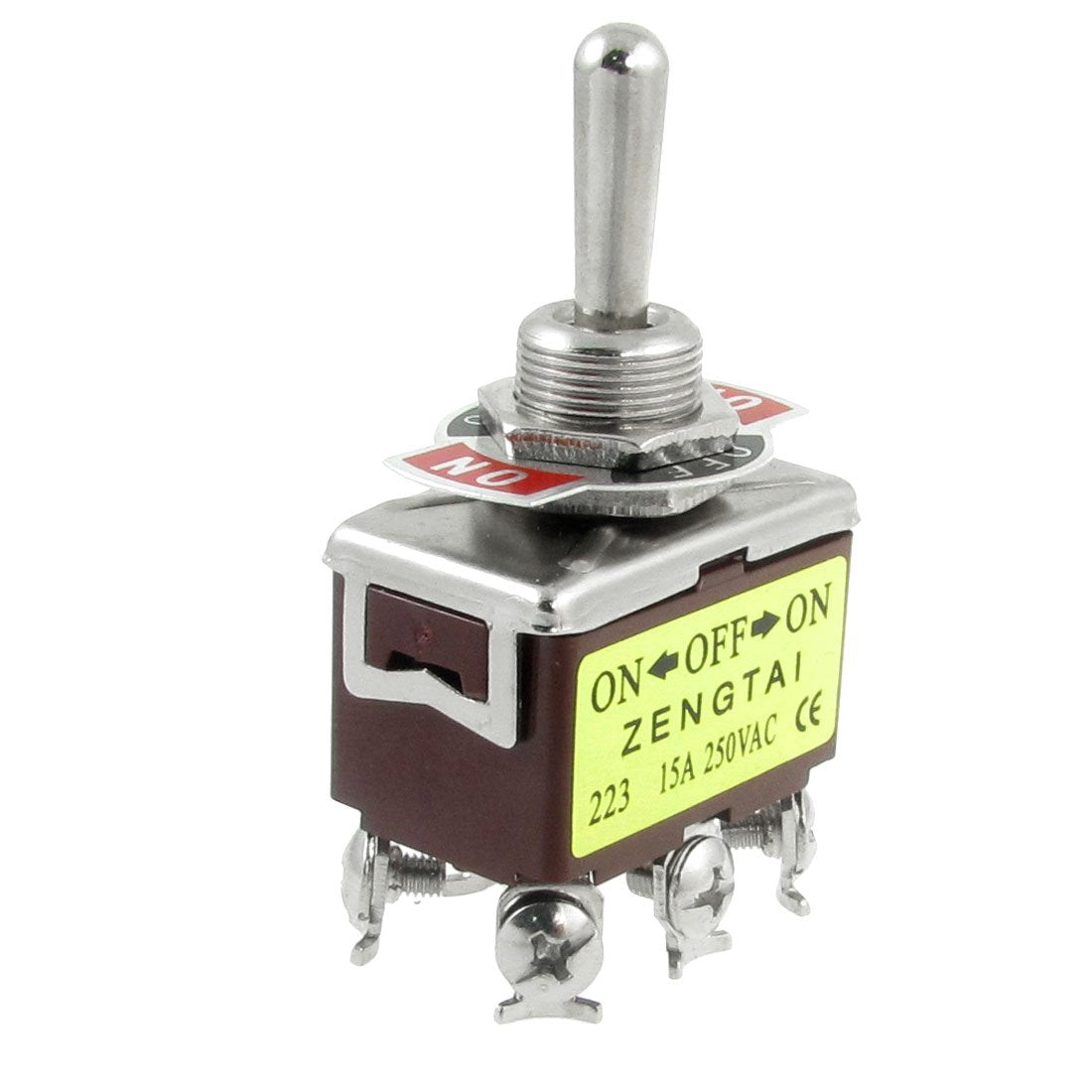

On/Off/On 3 Position Momentary 2P2T DPDT Toggle Switch, AC, 250V, 15 Amp

Key Features

• Product Name Toggle Switch;Action Type Momentary
• Position 3 Positions(ON/OFF/ON);Type DPDT
• Cap Diameter 11.8mm / 0.46";Body Size(Approx.) 33 x 20 x 20mm / 1.3" x 0.8" x 0.8"(L*W*T)
• Total Height 60mm / 2.36";Material Plastic, Metal
• Weight 38g;Package Content 1 x Toggle Switch

Product Description

DPDT, 6 screw terminals, on/off/on 3 position toggle switch. Can be used on low voltage or high voltage circuits ideal for switching lights or motors. Each switch comes with two hex nuts, a flat washer.

Specifications
