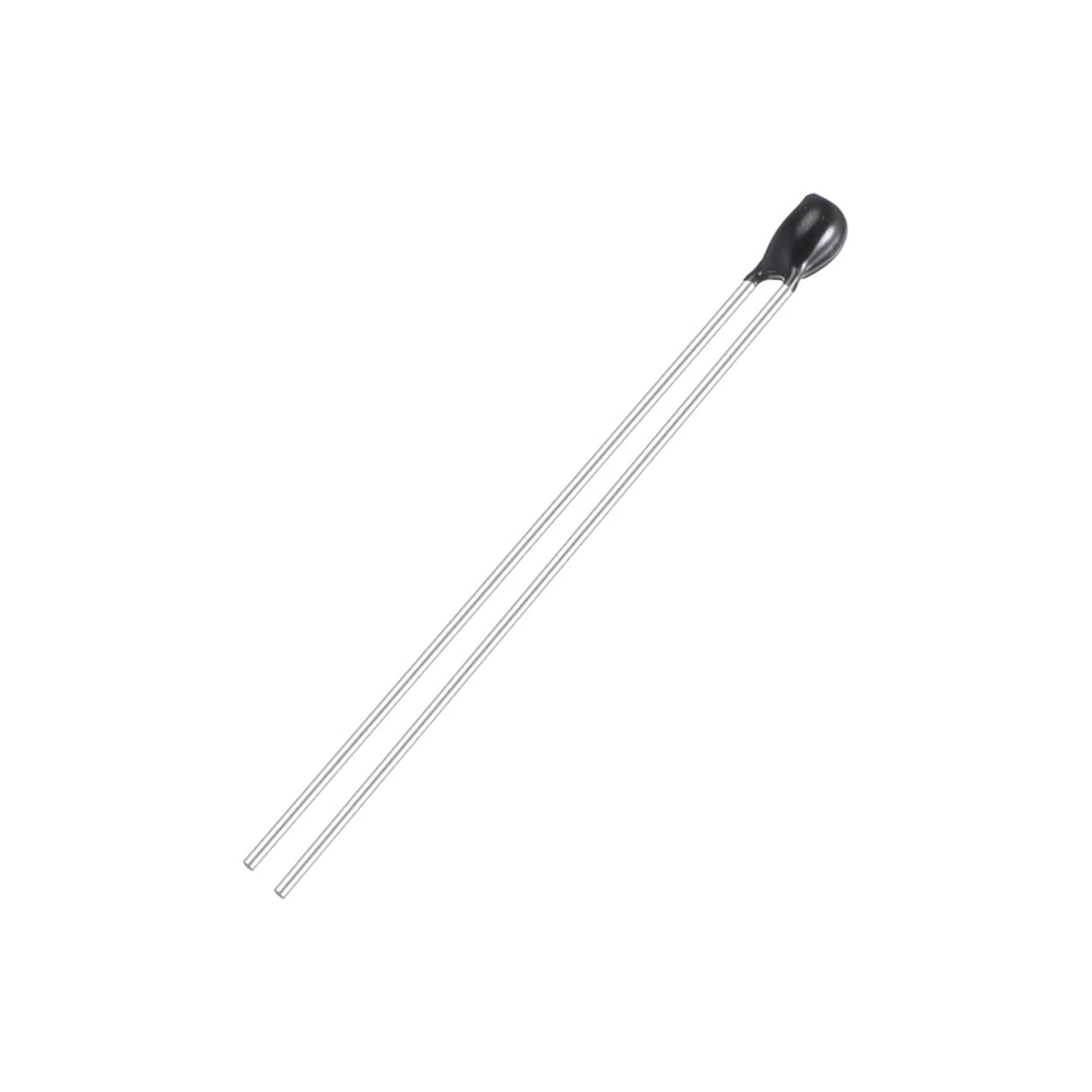

NTC Thermistors Resistor MF52-103/3435 10K Ohm Inrush Current Limiter Temperature Sensor Pack of 40

Key Features

• NTC thermistors are ethoxyline resin-enveloped thermistors in small size. Used for temperature measurement.
• 10K Ohm thermistors are very useful in many applications, and they are light for use.
• NTC (Negative Temperature Coefficient) thermistors, their resistance drops as temperature increases.
• Have them in a circuit built to accommodate them, they will work very well and consistently.
• Widely used for air condition equipments, heating apparatus, electric thermometers, liquid level sensors, etc.

Product Description

Description

• NTC thermistors are ethoxyline resin-enveloped thermistors in small size. Used for temperature measurement.* 10K Ohm thermistors are very useful in many applications, and they are light for use.* NTC (Negative Temperature Coefficient) thermistors, their resistance drops as temperature increases.* Have them in a circuit built to accommodate them, they will work very well and consistently.* Widely used for air condition equipments, heating apparatus, electric thermometers, liquid level sensors, electricity, electric table-board, etc.* Please cut the lead to the required length and remember the minimum length is 5 mm. Specification: * Product Name: NTC Thermistor* Color: Black, Silver Tone* Material: Ceramic, Metal* Resistance Value: 10K Ohm(+/-1%)* B Value: 3435(+/-1%)* Dissipation Coefficient: 2mw/C* Thermal Time Constant: 15s* Insulation Resistance: 50M Ohm* Operating Temperature Range: -55-125C* Lead Type: Radial Direction* Lead Shape: S* Pin Pitch: 1.5mm* Lead Size (Approx.): 0.3 x 27mm / 0.01 x 1.06inch (D*L)* Body Size (Approx.): 2 x 2mm / 0.079" x 0.079" (D*T)

Package Content

• x NTC Thermistors (+/-2%)

Specifications
