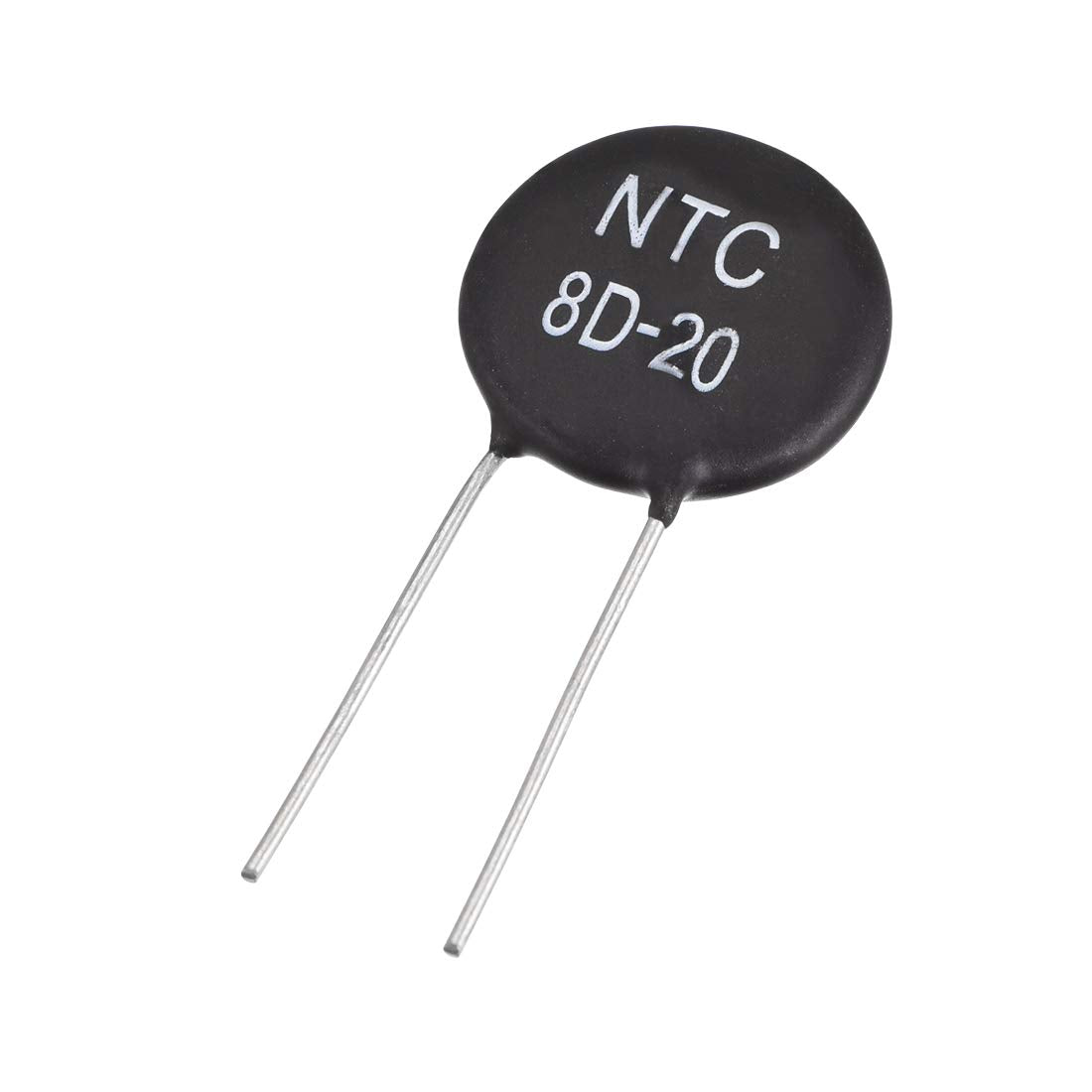

NTC Thermistor Resistors 8D-20 6A 8 Ohm Inrush Current Limiter Temperature Sensors Pack of 5

Key Features

• The NTC thermistors are reliable and stable, with wide range of over-current control.
• With small size and large power, they have strong capacity to inhibit surge current.
• Large material constant, large B value, with small residual resistance.
• Thermal shock resistance, with wide range of operating temperature.
• Used for controlling the inrush current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, etc.

Product Description

Description

• The NTC thermistors are reliable and stable, with wide range of over-current control.* With small size and large power, they have strong capacity to inhibit surge current.* Large material constant (B value), with small residual resistance.* Thermal shock resistance, with wide range of operating temperature.* Used for controlling the current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, electronic rectifier and other electronic installations.

Note

The thermistor cannot be used in parallel in the circuit. Specification: * Product Name: NTC Thermistor* Color: Black, Silver Tone* Material: Ceramic, Metal* Zero Power Resistance at25C: 8 Ohm(+/-20%)* B Value: >/=2900* Thermal Recovery Time Coefficient: 105s* Thermal Dissipation Constant: 25mw/C*Operating Temperature: -40-200C* Max Steady State Current: 6A* 25C Insulation Max Resistance: 0.142 Ohm* Lead Type: Radial Direction* Lead Shape: S* Pin Pitch: 9.5mm / 0.38inch* Lead Size(Approx.): 1 x 24mm / 0.04 x 0.94inch (D*L)* Body Size(Approx.): 21 x 4.5mm (D*T)

Package Content

• x NTC Thermistors
